Removal & Installation

  1. Remove door trim panel and watershield. See DOOR TRIM PANEL  .
  2. Disconnect electrical connector at switch. See Fig 1 .
  3. Depress metal retainers on bottom of switch, and push switch out of door trim panel. See Fig 2 .
  4. To install, reverse removal procedure.

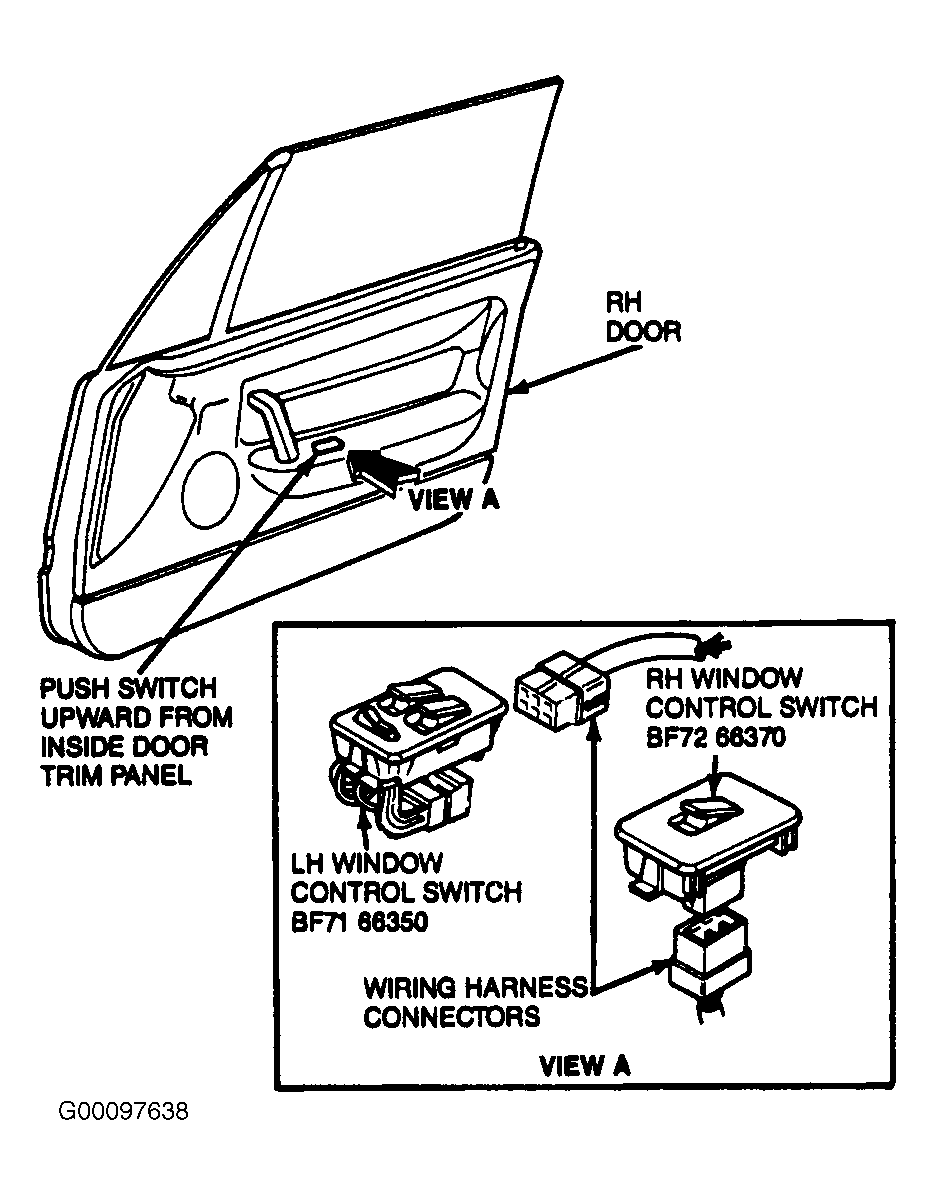

Fig 1: Locating Switch Electrical Connections
G00097638Courtesy of FORD MOTOR CO.

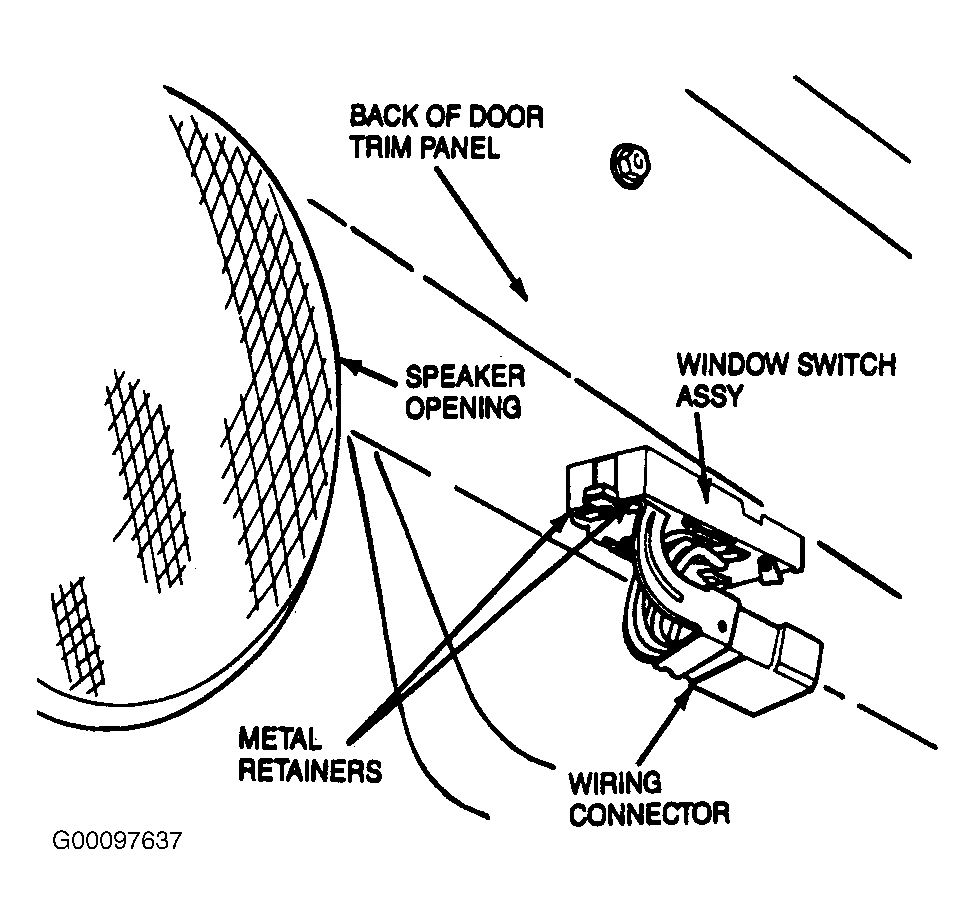

Fig 2: Locating Switch Metal Retainers
G00097637Courtesy of FORD MOTOR CO.
