Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| Air Bag Diagnostic Module | Behind left side of instrument panel. | |
| Blower Motor Speed Controller | On side of evaporator, right hand rear of engine bay. | |
| Daytime Running Light Module | Behind center of instrument panel. | |

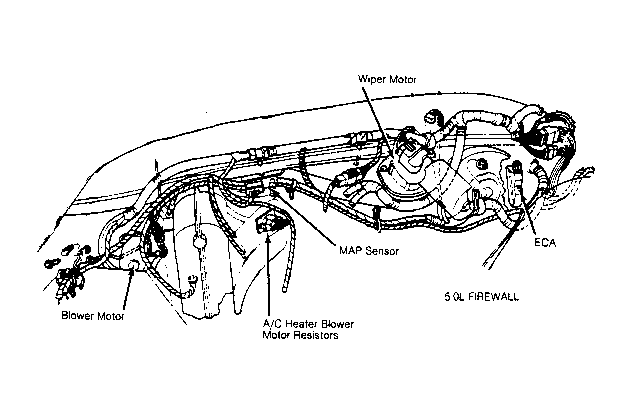

| Electronic Control Assembly (ECA 5.0L) | On left end of firewall, near master cylinder. See Figure . | |
| Heated Windshield Control Module | Behind dash, under glove box. | |
| Ignition Module | On left front fender panel. See Figure . | |
| Load Leveling Control Module | ||
| Sedan | In luggage compartment, on right rear quarter panel. | |
| Wagon | At left rear tailgate pillar. | |
| Low Fuel Warning Module | Part of instrument cluster. | |
| Microprocessor Control Unit (MCU - 5.8L Police) | On left front fender panel. See Figure . | |

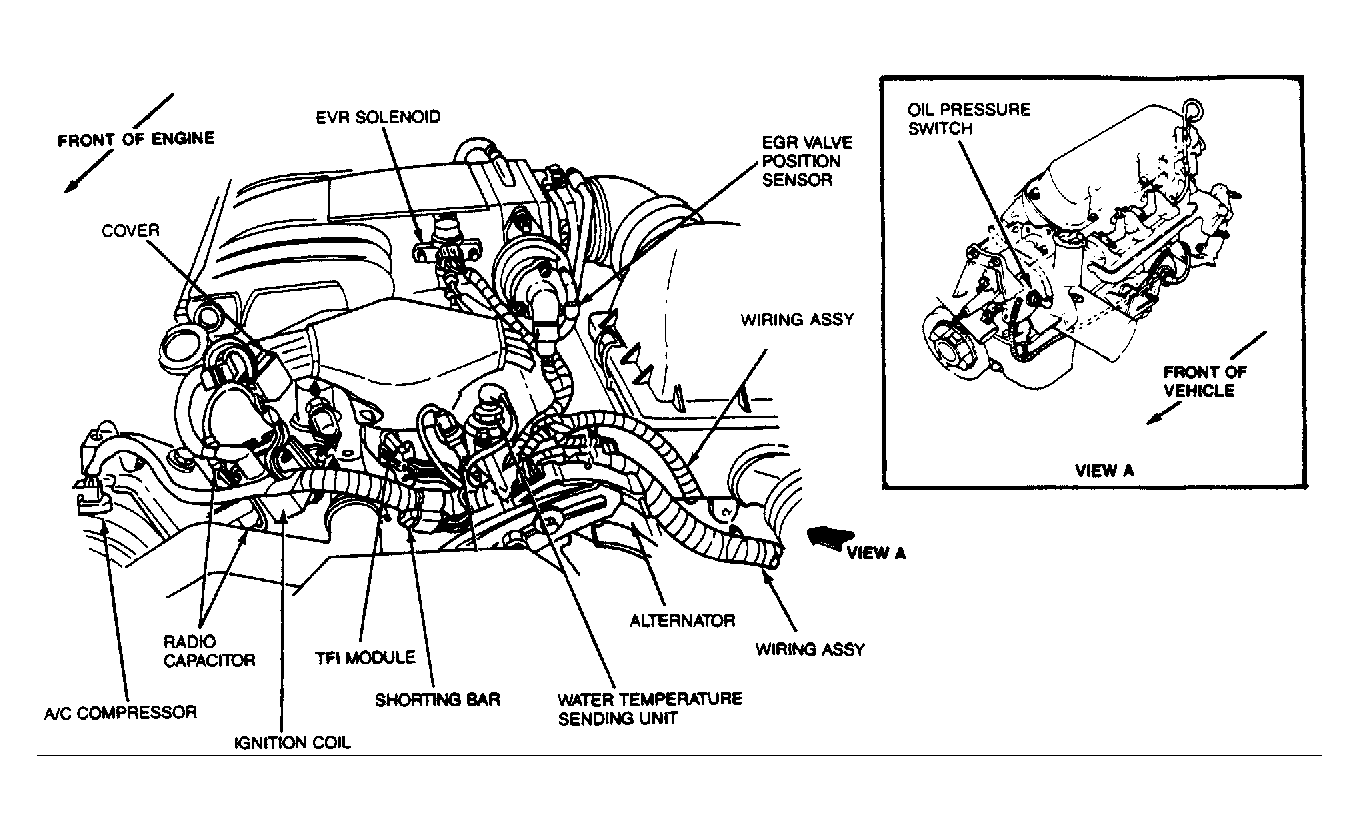

| TFI Ignition Module (5.0L) | On front of engine, near alternator. See Figure . | |
| Warning Chime Module | Behind center of dash, below radio. | |
