Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Circuit Breakers | ||
| Rear Lighters, Power Door Locks, Power Seats | In fuse block (30 Amp). See Figure . | |
| Tailgate Window, Dash Panel Switch & Power Windows | In fuse block (20 Amp). See Figure . | |
| Windshield Wiper/Washer | In fuse block (8.25 Amp). See Figure . | |

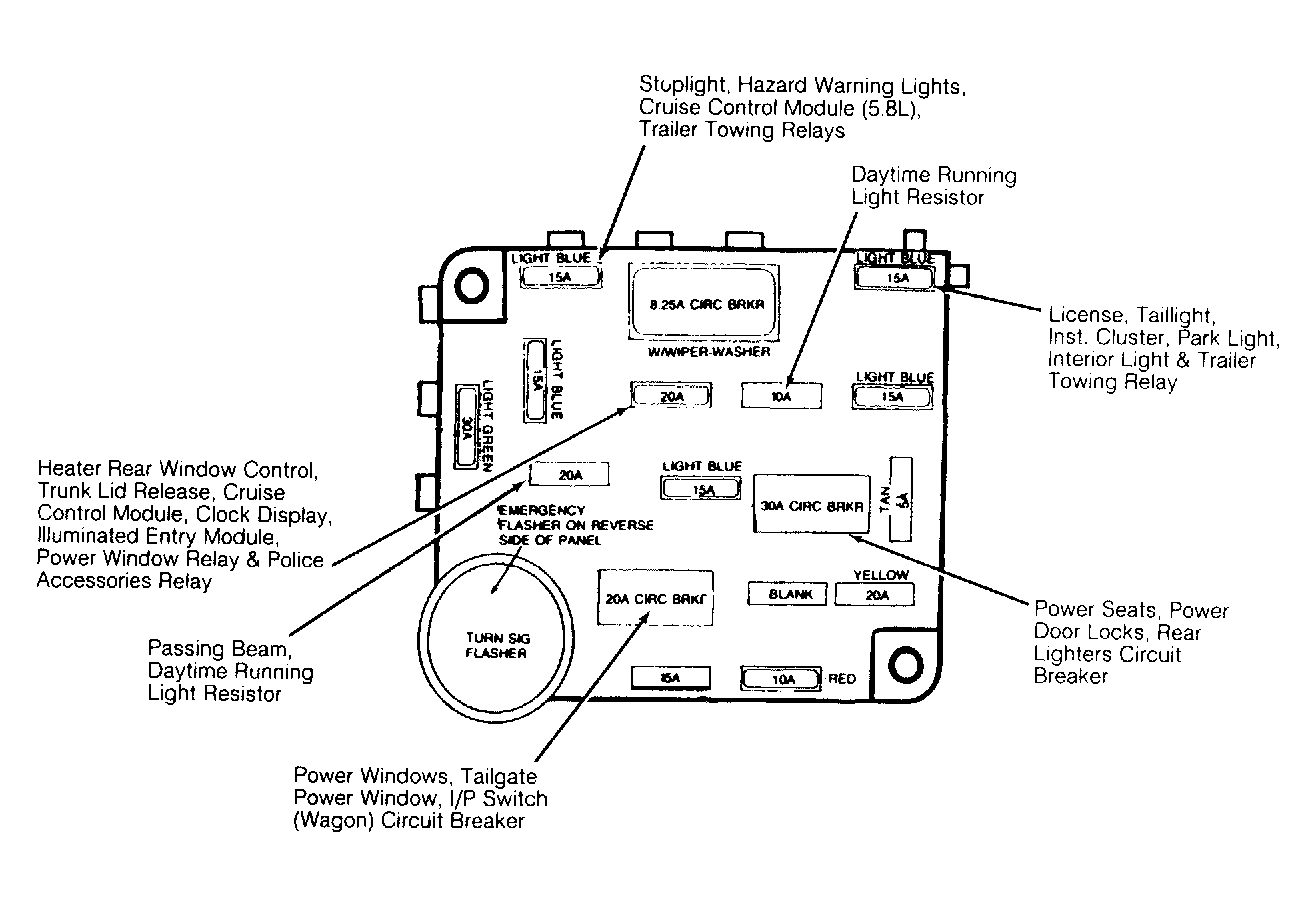

| Fuse Block | Under dash, left of steering column. See Figure . | |
| Fusible Links | ||

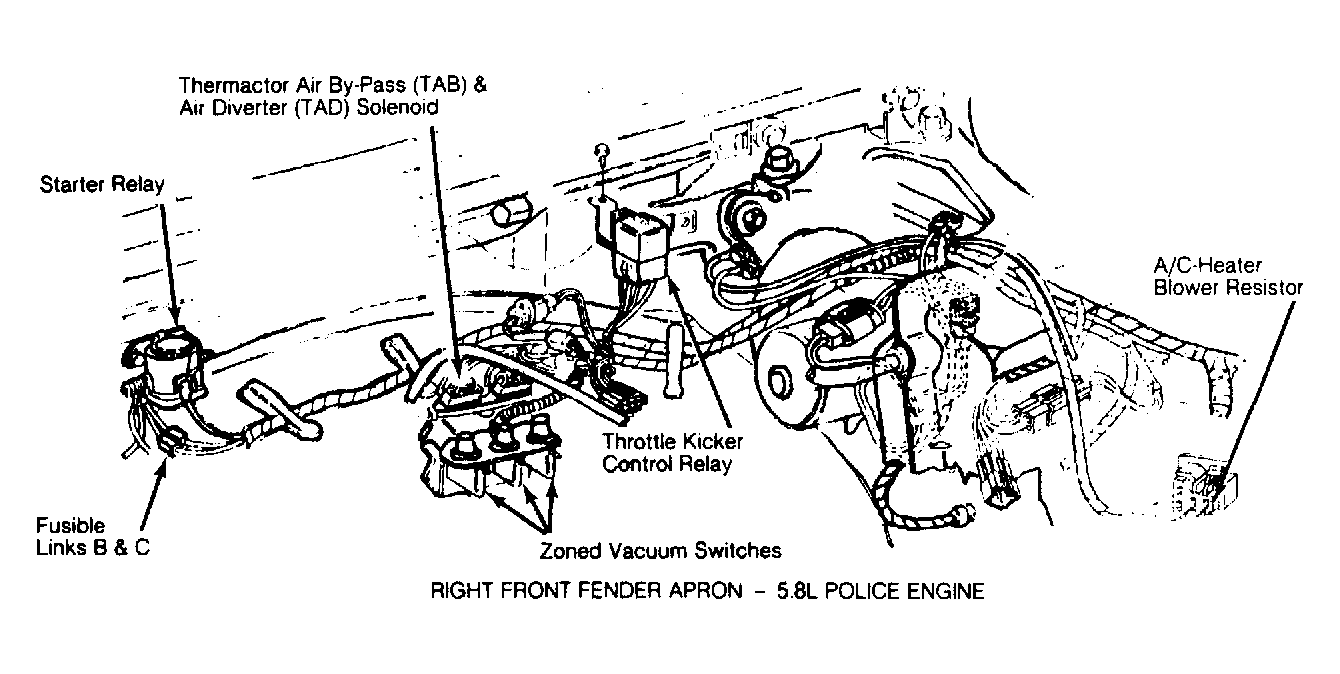

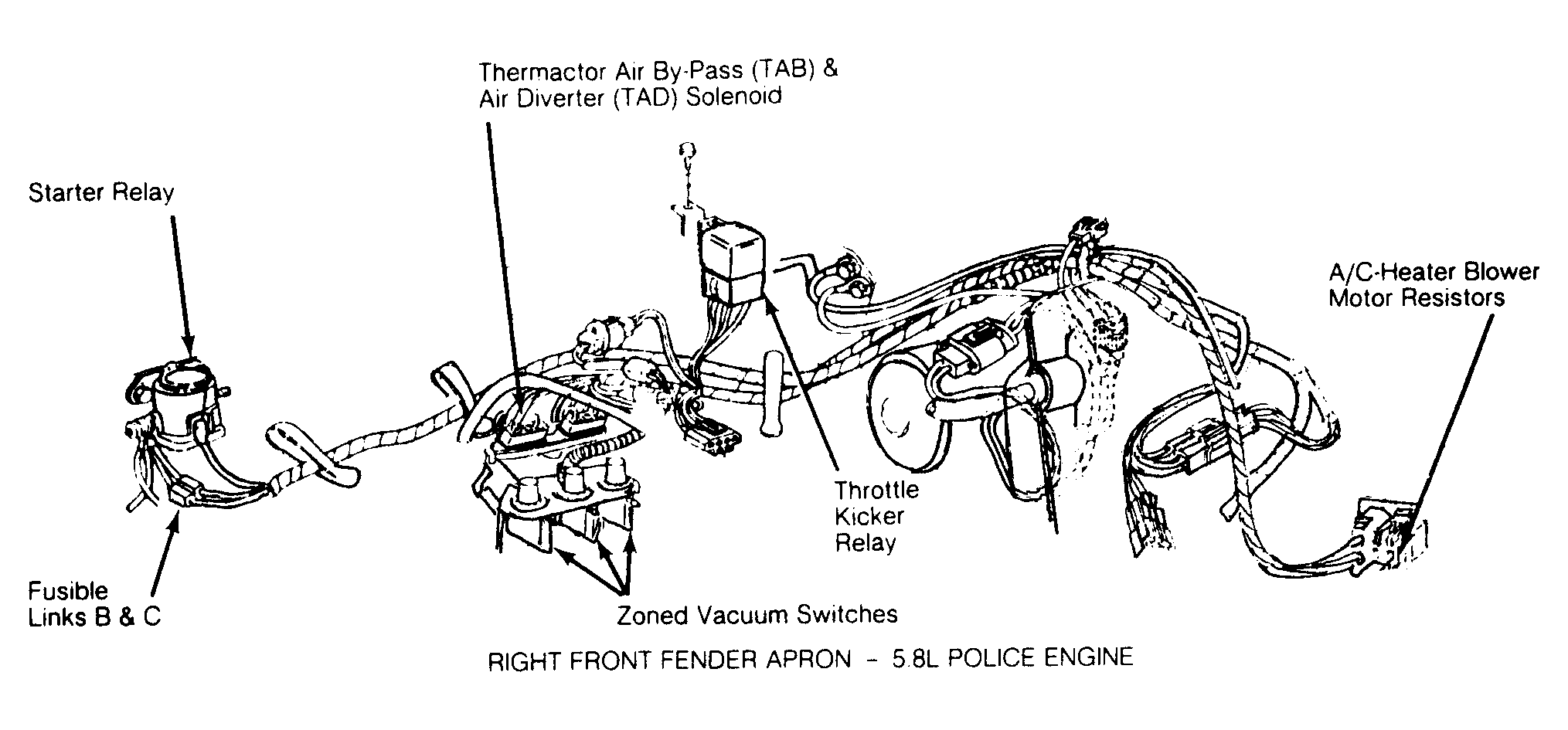

| Accessories (Black) C | At starter relay. See Figure . (5.8L shown, 5.0L is similar). | |
| Charging System (Green) R | At starter relay. | |
| Charging System (Gray) A | At starter relay. | |
| EEC-IV (Blue) Q | On left side of firewall. | |
| EEC-IV (Blue) U | At starter relay. | |
| EEC-IV (Brown) T | At starter relay. | |
| Headlights (Black) B | At starter relay. See Figure . | |
| Ignition (Blue) M | On left fender panel. See Figure . | |
| Ignition (Dark Blue) N (5.8L Police) | On left front fender panel. See Figure . | |
| Load Leveling System (Black) Y | At starter relay. | |
| Load Leveling System (Brown) L | At starter relay. | |
| Police Option (Black) Z | At starter relay. | |
| Rear Defroster (Black) E | At starter relay. | |
| TFI Ignition (Dark Blue) N | On left front fender panel. | |
| Thermactor Control Fuse | On left front fender panel, near speed control servo. | |
