Remove/Install Crankshaft Hall Sensor - AR15.12-P-2136SB
Engine 256 in model 223
Shown on engine 256.9
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove rear bottom engine compartment lining. | AR61.20-P-1105S | |
| 2 | Remove bracket (1) and place to one side. | Engine 256.9 in model 223 with code B01 (48V technology) |
*BA54.18-P-1002-02D |
| 3 | Release and disconnect electrical connector at crankshaft Hall sensor (L5). | ||
| 4 | Remove screw (2). | *BA15.10-P-1001-03I | |

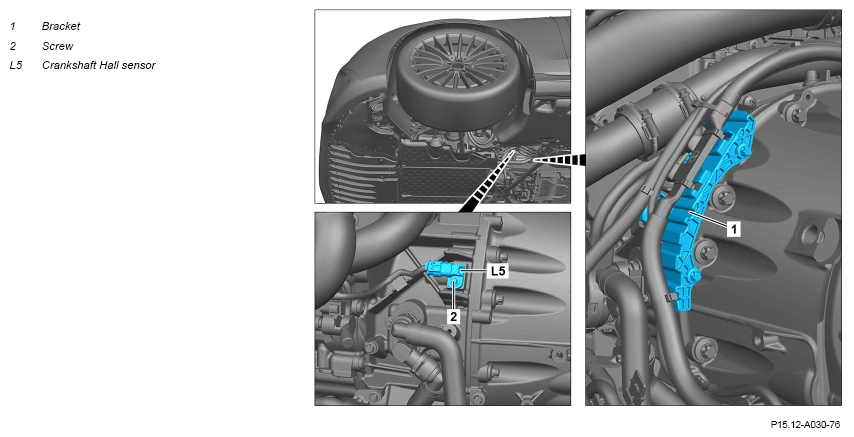

| 5 | Remove crankshaft Hall sensor (L5). | Fig 1 | |
| 6 | Install in the reverse order. | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform engine test run. While doing so, check engine for proper operation and leak tightness. |
POSITION SENSOR
| Number | Designation | Engine 256 | |
|---|---|---|---|
| BA15.10-P-1001-03I | Bolt, position sensor for crankshaft to crankcase/oil pan | Nm | 8 |
WIRING HARNESS
| Number | Designation | Model 223 | |
|---|---|---|---|
| BA54.18-P-1002-02D | Screw, 48V wiring harness holder to transmission | Nm | 12 |
