Control Unit - Keyless-Go - Engine Does Not Start - Vehicle Does Not Recognize Key (LI54.21-P-064645)

Publication date: 2016-08-10
Reference number: LI54.21-P-064645

CONTROL UNIT - KEYLESS-GO - ENGINE DOES NOT START - VEHICLE DOES NOT RECOGNIZE KEY

TECHNICAL SERVICE BULLETIN

Reference Number(s): LI54.21-P-064645 Version 1, Date of Issue: August 10, 2016

MERCEDES-BENZ:	213
DESIGN GROUP:	54.21 Control modules/modules

COMPLAINT

Keyless-Go control unit fault codes

Engine may not start

Vehicle may not recognize key

CAUSE

Water traces (drips) on Keyless-Go control unit.

REMEDY

Dismantle right rear interior trim in the trunk area (see photo attached). Check if there are any traces of water on the Keyless-Go control unit. If yes, please create a PTSS case before repairs are performed.

IMPORTANT: Do not dismantle any more components.

Please provide the following information in the case:

Run water test and document with videos of inside and outside of trunk (passenger side).
Pictures of wiring harness for Keyless-Go control unit.

Repair instructions will follow via PTSS case.

If no traces of water are found, please proceed with diagnostics of the KG system.

ATTACHMENTS

File	Description

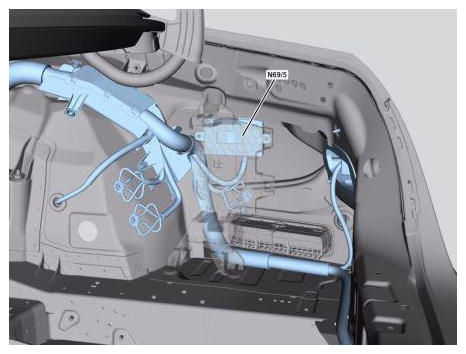

	KG control unit location

CONTROL UNIT/FAULT CODE

Control unit	Fault code	Fault text
N69/5 - KEYLESS GO (KG) (KG213)	-	-
