Remove/install alternator - AR15.40-P-5032TS
ENGINE 272, 273 in MODEL 211, 219
MODIFICATION NOTES
| 3.5.05 | Bolt connecting right air shutoff valve to cylinder head | Engine 272 | *BA14.30-P-1003-02A |
| Remove, install | |||
| 1 | Disconnect ground line from battery | ||
| Model 211.0 | AR54.10-P-0003T | ||
| Model 211.2 | AR54.10-P-0003TA | ||
| Model 219 | AR54.10-P-0003TX | ||
| 2 | Pull front engine cover (7) up and out of the mounts. | ||
| 3 | Remove the right intake air duct (8) | ||
| 4 | Remove poly-V-belt | AR13.20-P-0001TS | |
| 5 | Remove right air shutoff valve | Model 211.087/092/287/292 | AR14.30-P-7200TS |
| *BA14.30-P-1003-02A | |||
| 6 | Remove fan unit | Engine 273 | AR20.40-P-6800TS |
| 7 | Remove lower engine compartment paneling | Model 211 | AR61.20-P-1105T |
| Model 219 | AR61.20-P-1105TX | ||

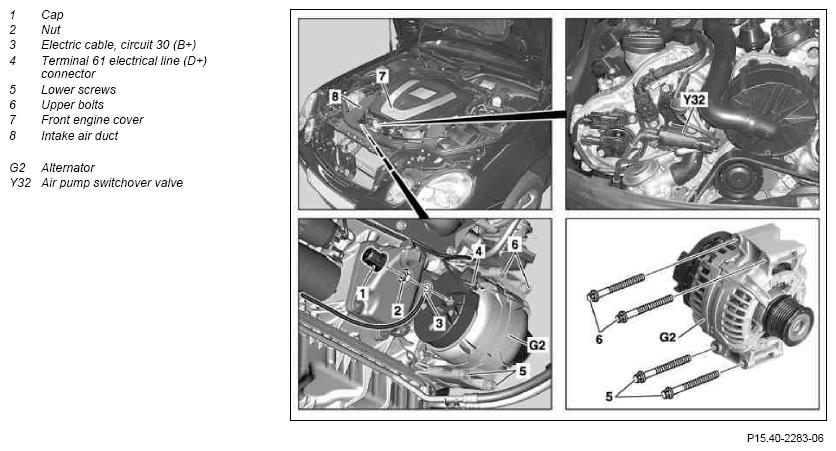

| 8 | Remove cap (1) and dismount electrical line (3) from alternator (G2), for this step, unscrew nut (2) | *BA15.40-P-1002-01F | |
| 9 | Disconnect connector for electrical line (4) from alternator (G2) | ||
| 10 | Unscrew lower bolts (5) of alternator (G2) | *BA15.40-P-1001-01F | |
| Fig 2 | |||
| 11 | Unscrew the upper bolts (6) for alternator (G2) | *BA15.40-P-1001-01F | |
| 12 | Take alternator (G2) down and out | ||
| 13 | Install in the reverse order |
ALTERNATOR
| Number | Designation | Engine 272 | Engine 273 | |
|---|---|---|---|---|
| BA15.40-P-1001-01F | Bolt connecting alternator to timing case | Nm | 20 | 20 |
| BA15.40-P-1002-01F | Nut connecting circuit B+ to alternator | Nm | 15 | 15 |
AIR SHUTOFF VALVE
| Number | Designation | Engine 272 | Engine 273 | |
|---|---|---|---|---|
| BA14.30-P-1003-02A | Bolt connecting right air shutoff valve to cylinder head | Nm | 14 | 14 |
