Removing, installing windowbag - AR91.60-P-0693T

MODEL 211.0

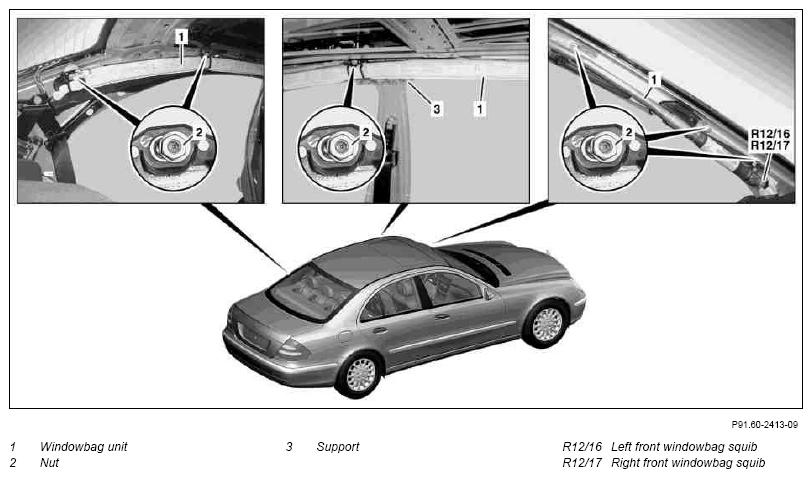

Fig 1: Identifying Windowbag Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

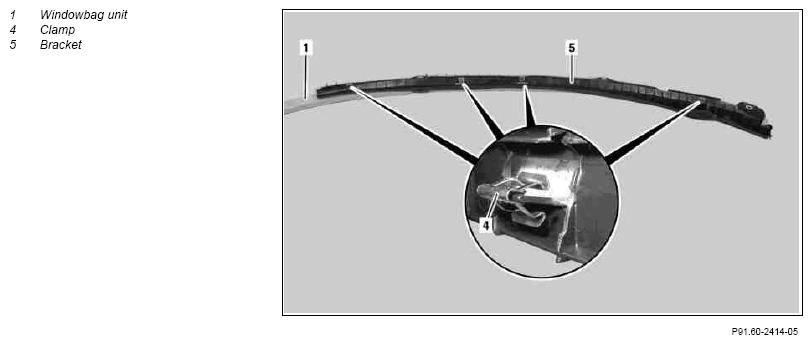

Fig 2: Identifying Windowbag Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units.	Store airbag units with deployment side facing up; do not expose to temperatures greater than 100°C. When working on these units, disconnect the power supply.	AS91.00-Z-0001-01A
	Notes on performing repair, body work and welding on vehicles with airbags and ETR units		AH91.00-P-0002-01M
	Assessment of airbag and belt tensioner units in accident vehicles		AH91.00-P-0006-01B
	Legal requirements on handling and storing airbags and emergency tensioning retractor units		AH91.00-P-0004-01A
	Note on function reliability of windowbag		AH91.60-P-0693-01A
1	Remove headliner	On vehicles without code (414a) Power glass tilting/sliding roof or without code (413) Panoramic sliding roof or without code (413) Panoramic sliding roof and code (419) Solar module for panoramic roof	AR68.30-P-4300T
		on vehicles with code (414a) electric glass titling/sliding roof	AR68.30-P-4300TA
		On vehicles with code (413) Panoramic sliding roof or with code (413) Panoramic sliding sunroof and code (419) Solar module for panoramic roof	AR68.30-P-4300TB
2	Disconnect connector from left front windowbag squib (R12/16) or right front windowbag squib (R12/17)	Installation:  connector must be heard to engage when being plugged in.
3	Unscrew nuts (2)		*BA91.60-P-1005-01A
4	Unclip bracket (5) with windowbag unit (1) from roof frame	Installation:  Replace clips (4). Clips (4) must audibly engage.	Figure
5	Remove windowbag unit (1) with bracket (5)	If windowbag unit (1) is being replaced, the defective windowbag unit (1) must be properly disposed of: ↓
		Notes on disposing of airbag and emergency tensioning retractor units	OS91.00-P-0001-01A
6.1	Fasten new support (3) on bracket (5) centrally to B-pillar	Only when replacing the windowbag unit (1).
7	Install in the reverse order
8	Check restraint system using STAR DIAGNOSIS
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system

AIRBAG

Number	Designation		Model 211.0
BA91.60-P-1005-01A	Nut, windowbag unit to roof frame	Nm	5

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
