Trunk lid drive unit, location/purpose/design/function - GF80.20-P-4121Q: Notes
MODEL 209.3 with CODE (881b) Remote trunk locking (RTL)

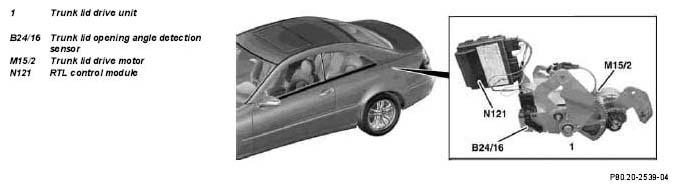

| Trunk lid drive unit, location | The trunk lid drive unit (1) is located in the trunk on the rear left below the multiple-joint hinge | ||
| Trunk lid drive unit, purpose | Automatic opening and closing of trunk lid | ||
| Trunk lid drive unit, design | The trunk lid drive unit (1) consists of trunk lid drive motor (M15/2), the trunk lid opening angle recognition sensor (B24/16) and the drive mechanism. | ||
| Trunk lid drive unit, function | GF80.20-P-4121-01Q |
