Diagnostic Trouble Code Definitions

In Fig 1 -Fig 3 the 1 and 2 digit codes in the left hand column are for generic scan tools. The 3 digit codes starting with zero or 1 are read from the Mercedes-Benz factory scan tool. To determine which illustration contains the appropriate information, see DIAGNOSTIC TROUBLE CODE CHART table.

DIAGNOSTIC TROUBLE CODE CHART

Generic Trouble Code	Mercedes-Benz Trouble Code	See
1	-	Fig 1
2	002	Fig 1
2	006	Fig 1
2	007	Fig 1
2	008	Fig 1
2	009	Fig 1
2	025	Fig 1
-	037	Fig 1
3	048-051	Fig 2
3	057-056	Fig 2
4	064	Fig 2
5	080	Fig 2
6	097	Fig 2
7	112	Fig 3
7	115	Fig 3
8	129	Fig 3
8	130	Fig 3
9	144	Fig 3
10	160	Fig 3
11	176	Fig 3
11	177-179	Fig 3
11	182	Fig 3
12	192	Fig 3
12	193	Fig 3

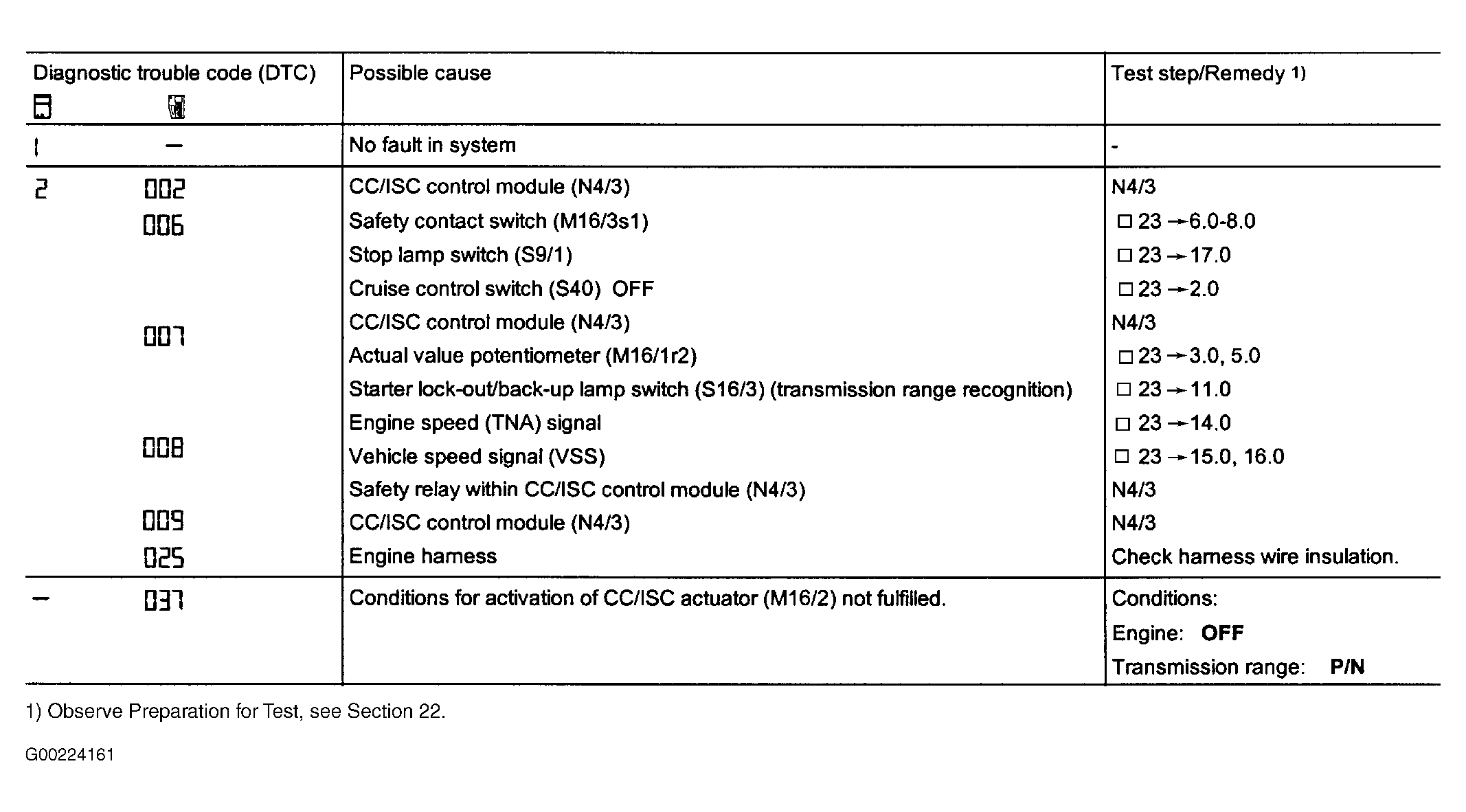

Fig 1: Diagnostic Trouble Code Definitions (1 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

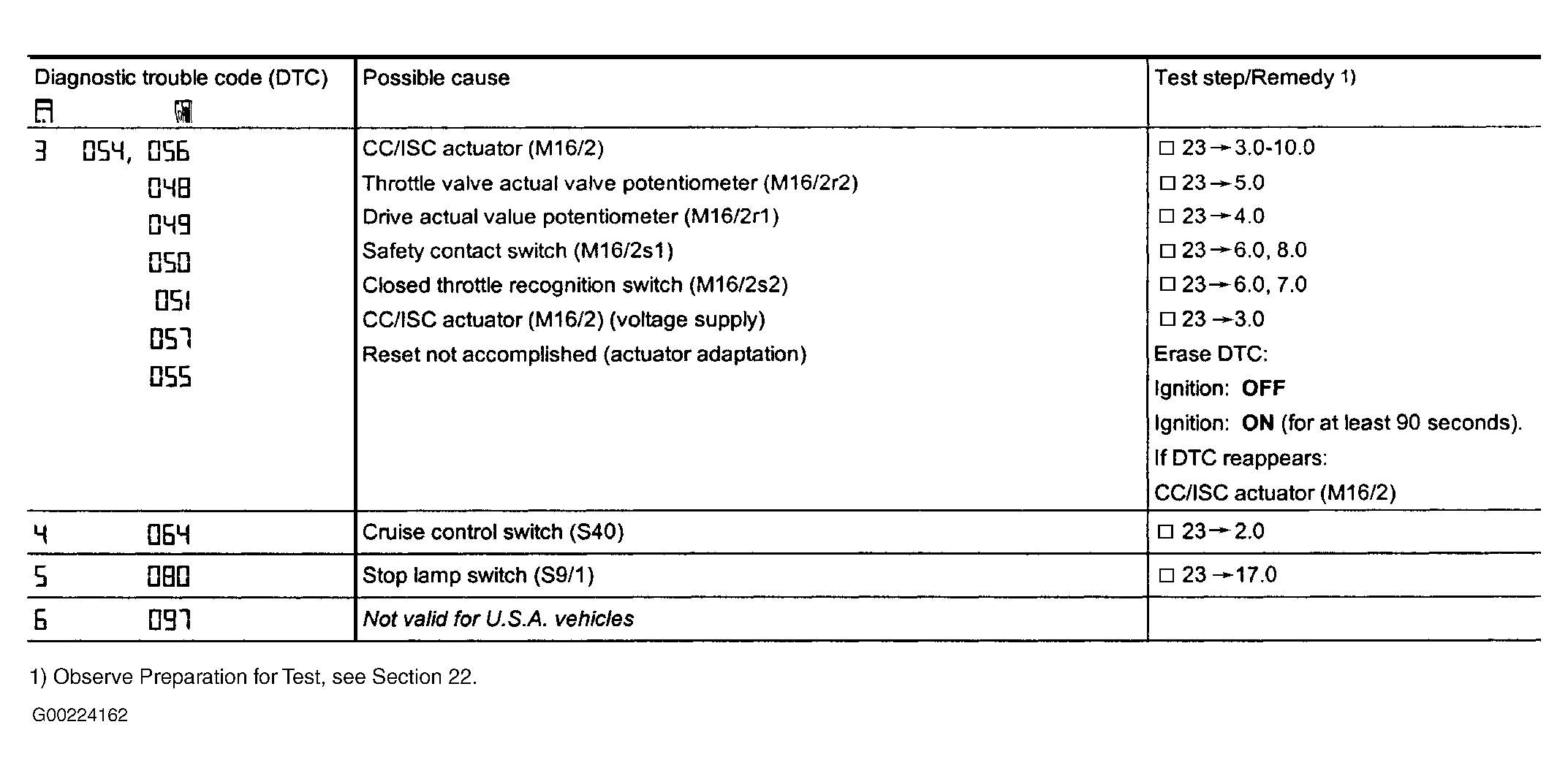

Fig 2: Diagnostic Trouble Code Definitions (2 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

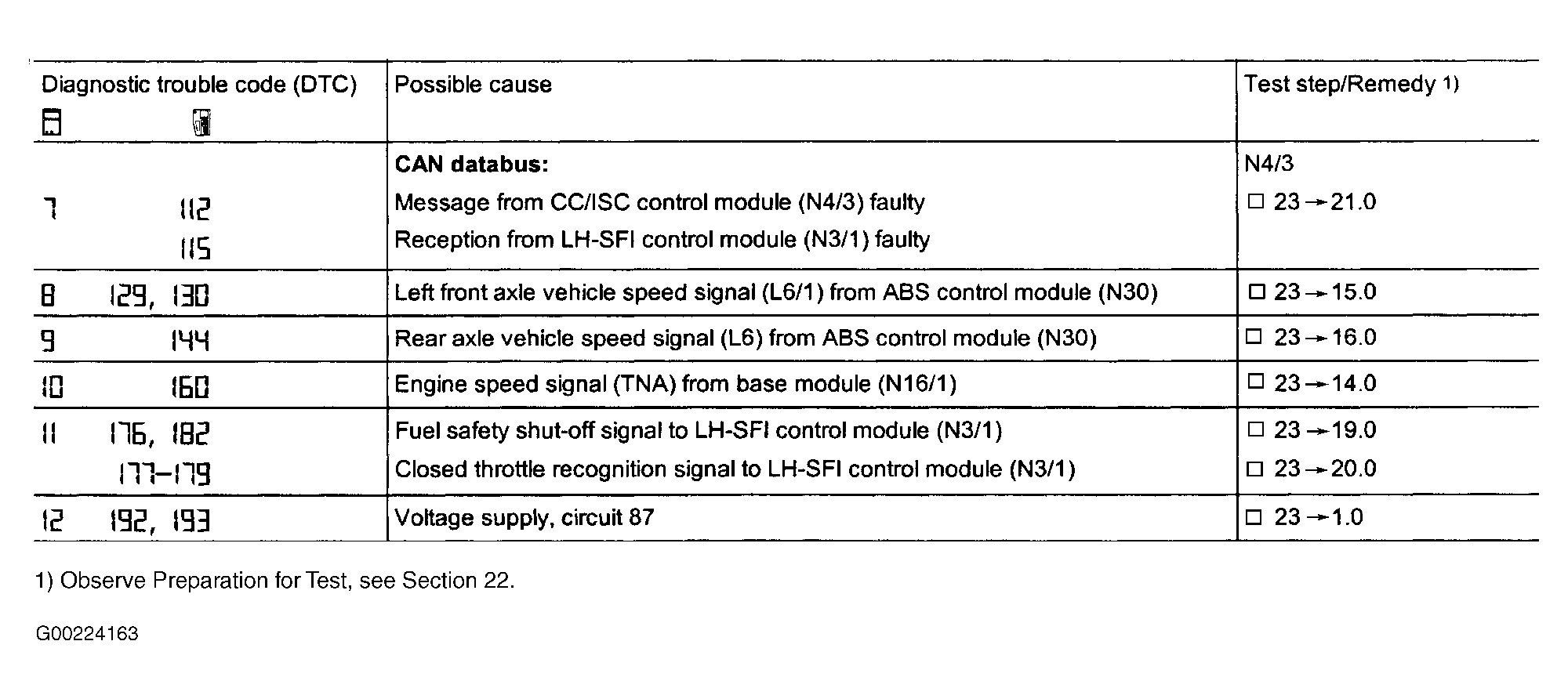

Fig 3: Diagnostic Trouble Code Definitions (3 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
