Connector Identification

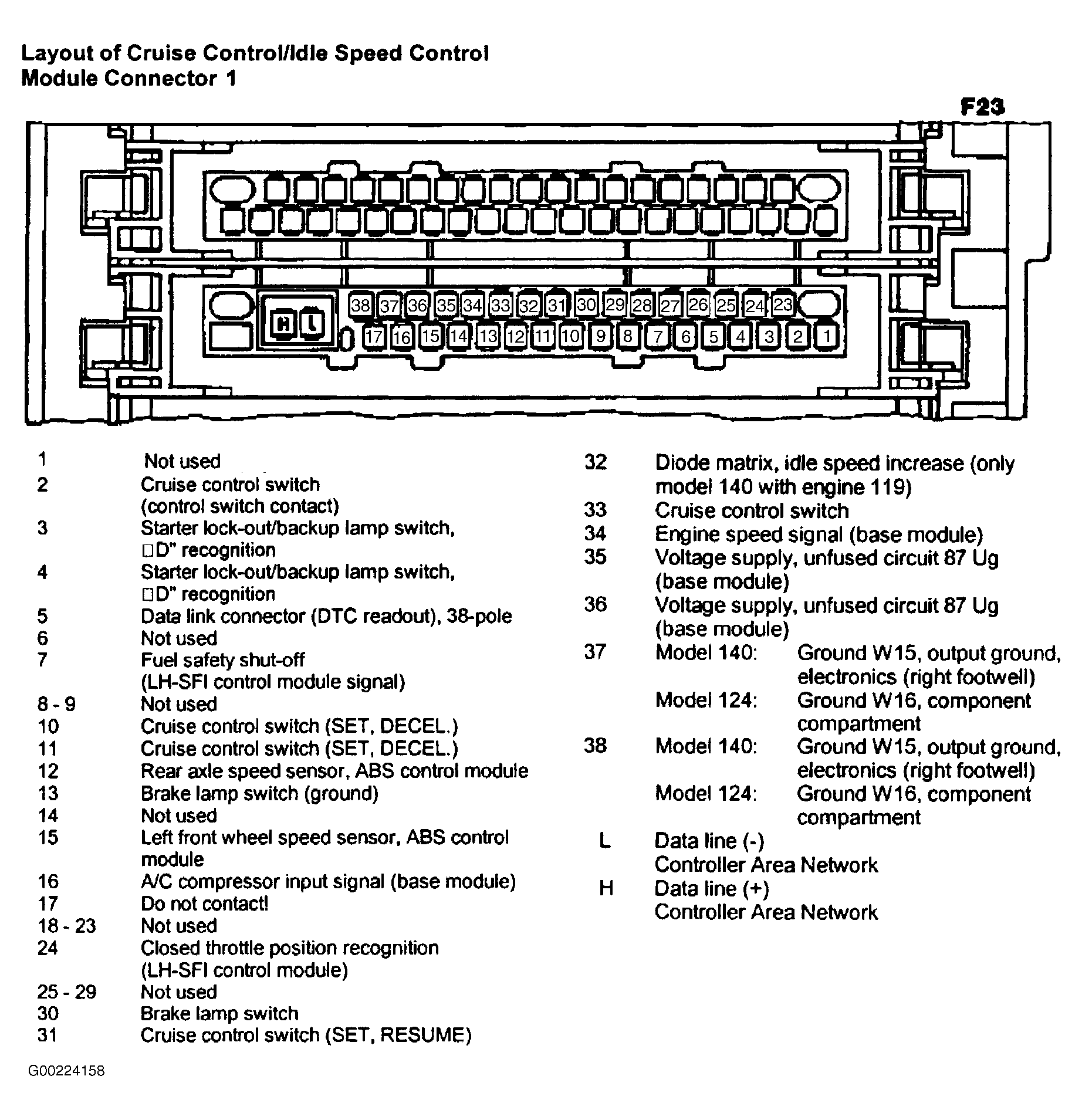

Fig 1: Cruise Control/Idle Speed Control Module Connector 1 Pin Identification
G00224158Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

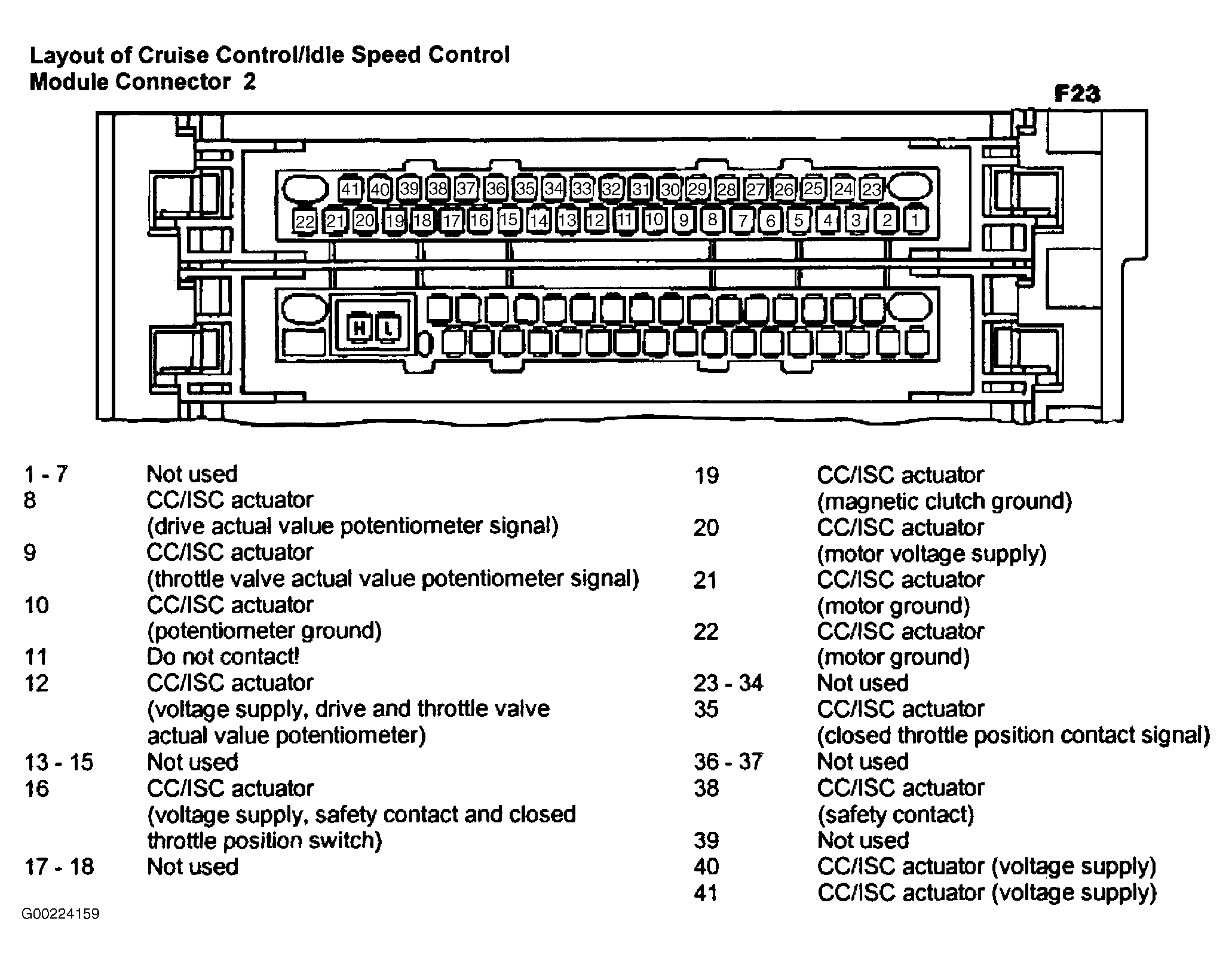

Fig 2: Cruise Control/Idle Speed Control Module Connector 2 Pin Identification
G00224159Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
