Testing Current On Actuator

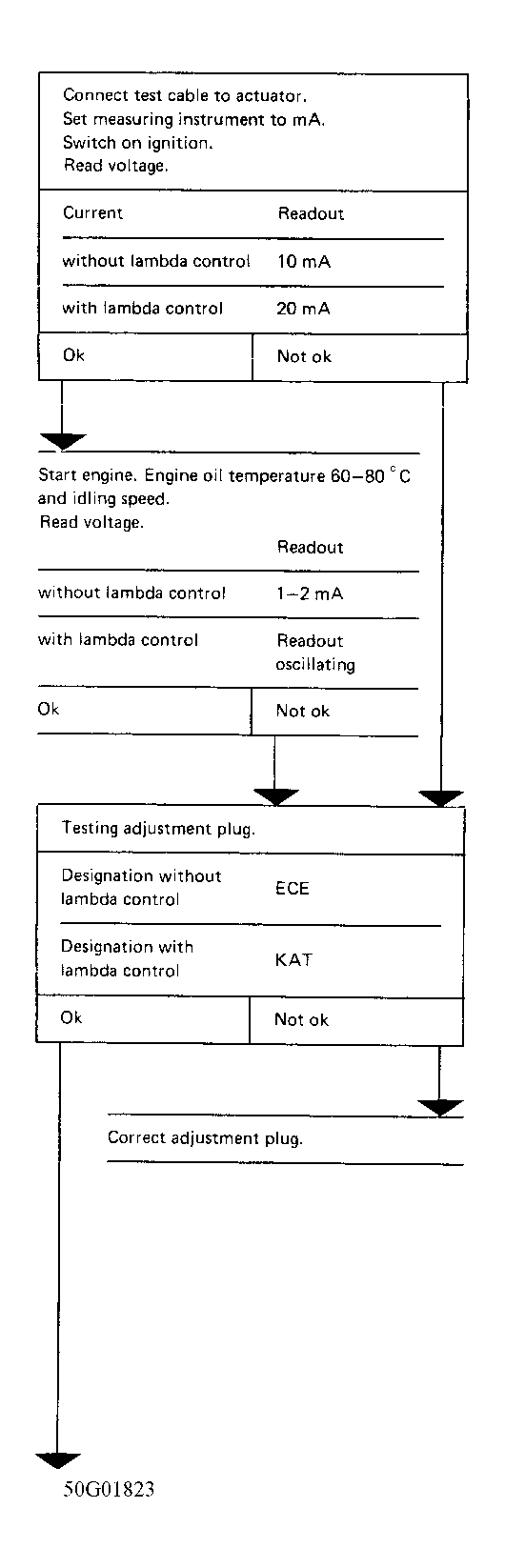

Fig 1: Flow Chart (1 of 2), Testing Current On Actuator
G50G01823Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Fig 2: Flow Chart (2 of 2), Testing Current On Actuator
G50B01825Courtesy of MERCEDES-BENZ OF NORTH AMERICA
