Keyless Beeper Removal/Installation

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  3. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)

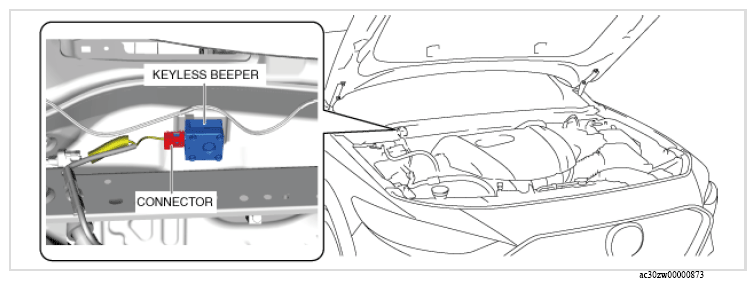

  4. Disconnect the connector.
    G16376546Courtesy of MAZDA MOTORS CORP.
  5. Pull the keyless beeper in the direction of the arrow (2) shown in the figure while pressing the keyless beeper tabs in the direction of the arrow (1) shown in the figure, detach the keyless beeper tabs and bracket, and then remove the keyless beeper from the bracket.
    G16376547Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
