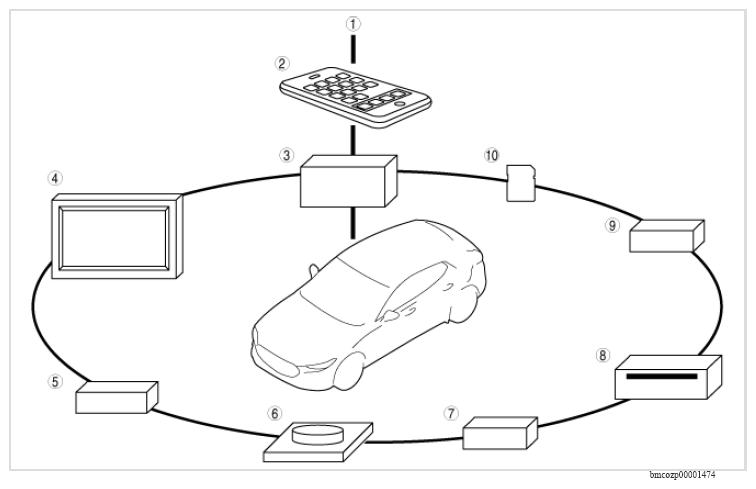

Schematic Diagram
WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT OPERATIONS
| Component No. | Refer to | ||
|---|---|---|---|
| 1 | Internet | ||
| 2 | Mobile device such as smart phone or bluetooth. Enabled device | ||
| 3 | Connectivity master unit (CMU) | ||
| 4 | Center display | ||
| 5 | Remote tuner (RT) | ||
| 6 | Commander switch | ||
| 7 | USB port/sd card slot hub (1) | ||
| 8 | CD/DVD player (1) | ||
| 9 | Audio amplifier | ||
| 10 | SD card (1) | ||
|
|||
