Advanced Keyless Entry System/Push Button Start System/Immobilizer System

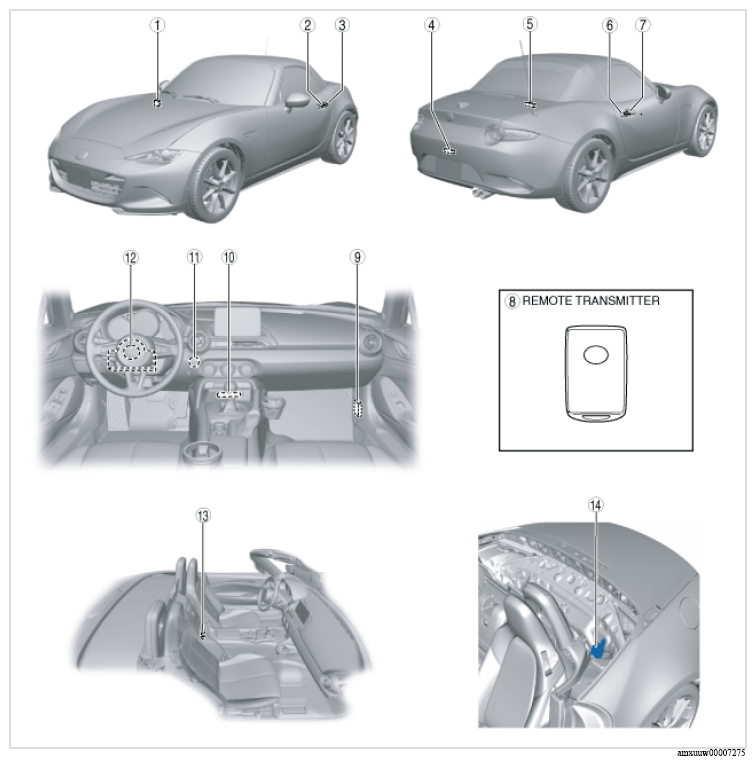

Fig 1: Security And Locks Components Location - Advanced Keyless Entry System/Push Button Start System/Immobilizer System

Courtesy of MAZDA MOTORS CORP.

SECURITY AND LOCKS COMPONENT OPERATIONS - ADVANCED KEYLESS ENTRY SYSTEM/PUSH BUTTON START SYSTEM/IMMOBILIZER SYSTEM

Component no.	Refer to
1	Keyless beeper (See KEYLESS BEEPER REMOVAL/INSTALLATION .) (See KEYLESS BEEPER INSPECTION .)
2	Keyless antenna (exterior, LF) (See KEYLESS ANTENNA REMOVAL/INSTALLATION .)
3	Request switch (LF) (See REQUEST SWITCH REMOVAL/INSTALLATION .) (See REQUEST SWITCH INSPECTION .)
4	Keyless antenna (exterior, rear) (See KEYLESS ANTENNA REMOVAL/INSTALLATION .)
5	Keyless antenna (interior, rear) (See KEYLESS ANTENNA REMOVAL/INSTALLATION .)
6	Request switch (RF) (See REQUEST SWITCH REMOVAL/INSTALLATION .) (See REQUEST SWITCH INSPECTION .)
7	Keyless antenna (exterior, RF) (See KEYLESS ANTENNA REMOVAL/INSTALLATION .)
8	Remote transmitter (See REMOTE TRANSMITTER DISASSEMBLY/ASSEMBLY .) (See REMOTE TRANSMITTER ID CODE REGISTRATION .) (See CLEARING REMOTE TRANSMITTER .) (See REMOTE TRANSMITTER BATTERY VOLTAGE INSPECTION .) (See REMOTE TRANSMITTER POWER SAVING FUNCTION .)
9	LF control unit (See LF CONTROL UNIT REMOVAL/INSTALLATION .) (See LF CONTROL UNIT INSPECTION .)
10	Keyless antenna (interior, front) (See KEYLESS ANTENNA REMOVAL/INSTALLATION .)
11	Push button start (See PUSH BUTTON START REMOVAL/INSTALLATION .) (See PUSH BUTTON START INSPECTION .)
12	Start stop unit (See START STOP UNIT REMOVAL/INSTALLATION .) (See START STOP UNIT INSPECTION .)
13	Keyless antenna (interior, center) (See KEYLESS ANTENNA REMOVAL/INSTALLATION .)
14	Keyless receiver (See KEYLESS RECEIVER REMOVAL/INSTALLATION .) (See KEYLESS RECEIVER INSPECTION .)
