Mazda Modular Diagnostic System (M-MDS)
- The M-MDS is an on-board diagnostic tool developed for the improvement of servicing efficiency, maintenance quality, and convenience, and the reduction of security risk.
- The M-MDS consists of a laptop PC for servicing work, the Mazda Diagnostic and Repair Software (MDARS) on-board diagnostic software, the VCM- used as a communication device between the vehicle and the laptop PC for servicing work, and each type of cable.

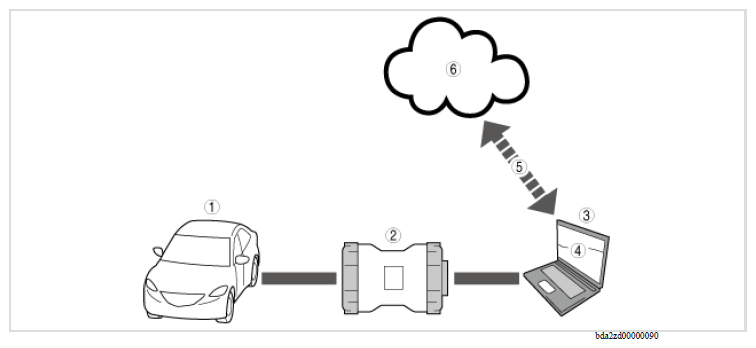

COMPONENT OPERATIONS
| Component no. | Refer to |
|---|---|
| 1 | Vehicle |
| 2 | VCM- |
| 3 | Laptop PC for servicing work |
| 4 | MADARS |
| 5 | Data |
| 6 | Cloud |
- With the MDARS, cloud technology is introduced for the storage of diagnosis history performed using applications (software for controlling on-board diagnosis function) or the MDARS, and data recorded by the PID/data monitor function.
