Fuel System Flow Diagram

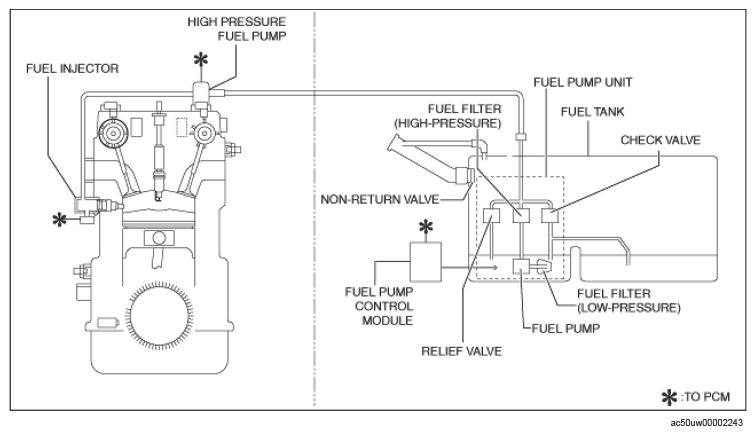

Fuel System Flow Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
