Vehicle without i-stop

  1. Switch the ignition to off.
    CAUTION:
    • Be careful not to contact the positive battery terminal.
    NOTE:
    • The positive battery cable nut cannot be removed to prevent it from falling off.
  2. Disconnect the negative battery terminal.

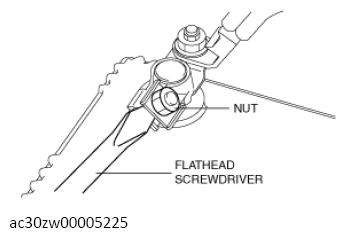

    • When disconnecting the plastic deformed negative battery terminal, expand the gap of the negative battery terminal using a flathead screwdriver, and remove the nut.
G14478565Courtesy of MAZDA MOTORS CORP.
