i-ACTIVE AWD SYSTEM LOCATION INDEX

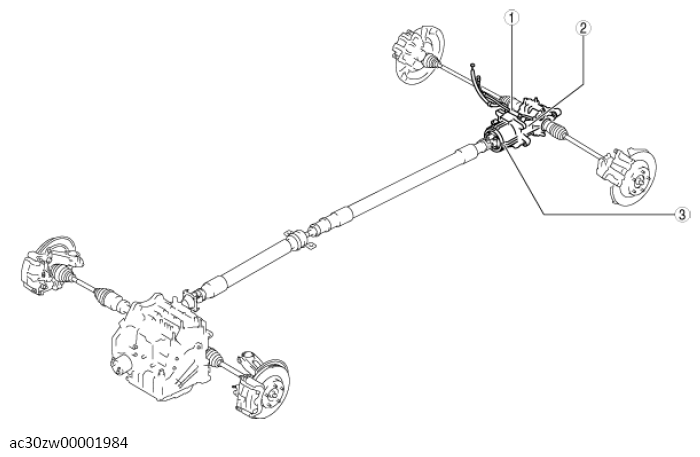

Fig 1: I-Active AWD System Components Location

Courtesy of MAZDA MOTORS CORP.

I-ACTIVE AWD SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	AWD solenoid (See AWD SOLENOID INSPECTION .)
2	Differential oil temperature sensor (See DIFFERENTIAL OIL TEMPERATURE SENSOR INSPECTION .) (See DIFFERENTIAL OIL TEMPERATURE SENSOR REMOVAL/INSTALLATION .)
3	Coupling component (See COUPLING COMPONENT REMOVAL/INSTALLATION [(US)] .) (See COUPLING COMPONENT TEMPERATURE SENSOR INSPECTION .) (See COUPLING COMPONENT CALIBRATION DATA WRITING .)
