Steering Shift Switch Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove the bolts.

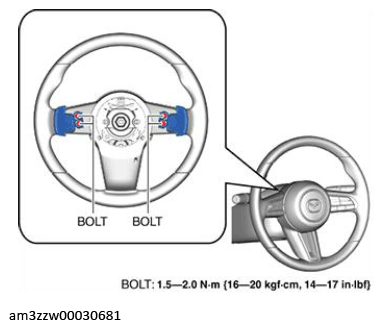

    Fig 1: Steering Shift Switch Bolts With Torque Specification
    G13176967Courtesy of MAZDA MOTORS CORP.

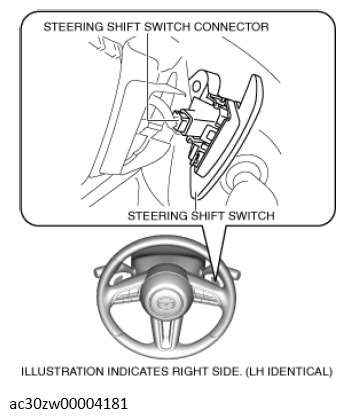

  3. Pull out the steering shift switch from the steering wheel until the steering shift switch connector is visible.
    G13558881Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the steering shift switch connector.

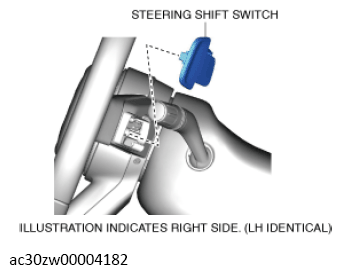

  5. Remove the steering shift switch.
    G13558882Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
