Sunroof Unit Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2021 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

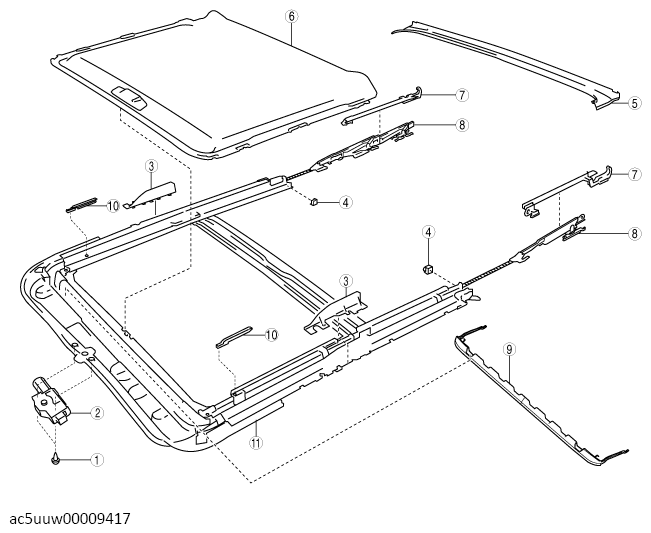

- Disassemble in the order indicated in the table.PARTS DESCRIPTION
1 Screw 2 Sunroof motor 3 Screen 4 Rear stopper 5 Drip rail 6 Sunshade
(See Sunshade Disassembly Note .)7 Front guide
(See Front Guide Disassembly Note .)8 Decoration link 9 Deflector 10 Set plate 11 Sunroof frame - Assemble in the reverse order of disassembly.
