Power Liftgate (PLG) Touch Sensor Removal/Installation

Replacement part

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
2. Remove the following parts:
   1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
   2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
   3. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
   4. Door lock switch (liftgate) (With door lock switch (liftgate)) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION [(US)] .)
   5. PLG rear switch (With PLG) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION .)
   6. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)

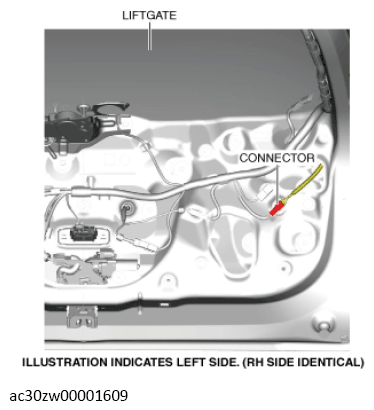

3. Disconnect the connector.

   Courtesy of MAZDA MOTORS CORP.

4. Remove the fasteners.

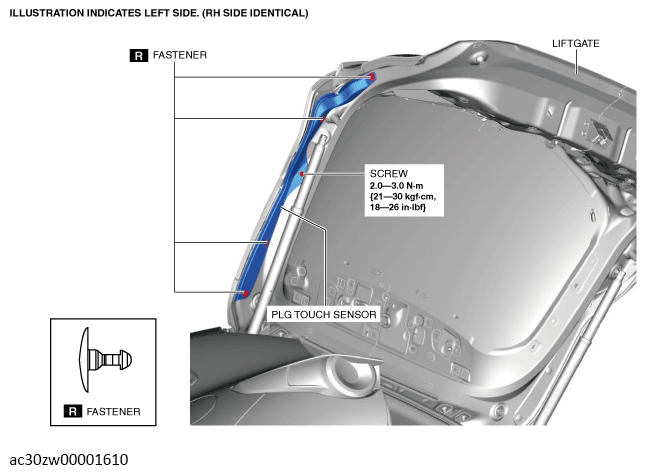

   Fig 1: Power Liftgate Touch Sensor, Fasteners And Screw With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
5. Remove the screw.

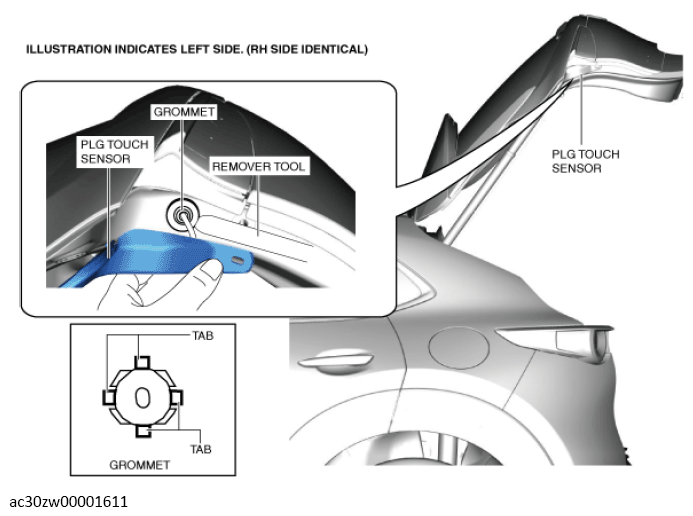

6. Insert a remover tool into the position shown in the figure.

   Courtesy of MAZDA MOTORS CORP.

7. Using the remover tool, detach the tabs of the grommet from the liftgate.
8. Remove the wiring harnesses from the vehicle body.
9. Remove the PLG touch sensor.
10. Install in the reverse order of removal.
