Front Deflector

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bolts and fastener.
LH

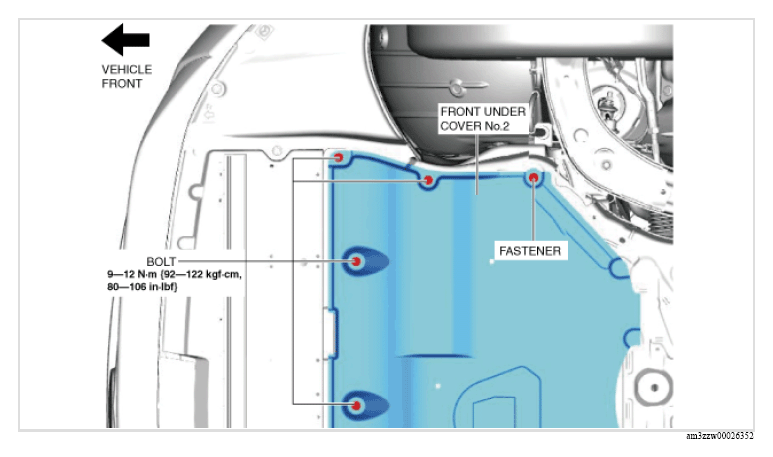

Fig 1: Front Under Cover No. 2 Bolts With Torque Specification (LH)
Courtesy of MAZDA MOTORS CORP.

RH

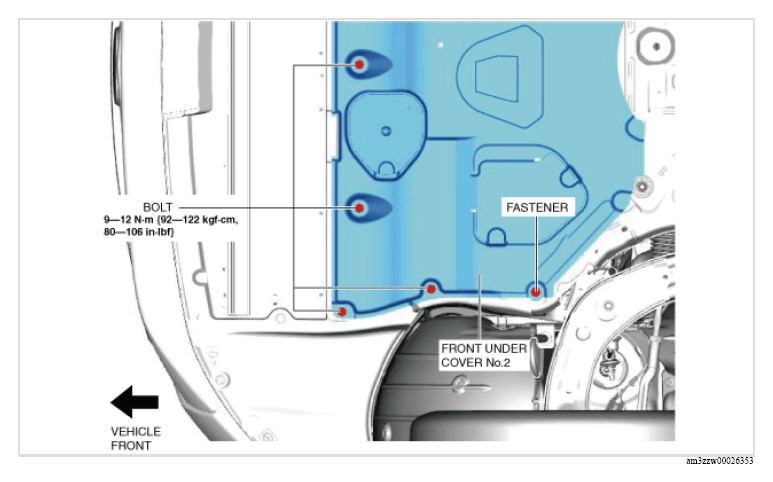

Fig 2: Front Under Cover No. 2 Bolts With Torque Specification (RH)
Courtesy of MAZDA MOTORS CORP.
Partially peel back the front under cover No. 2.

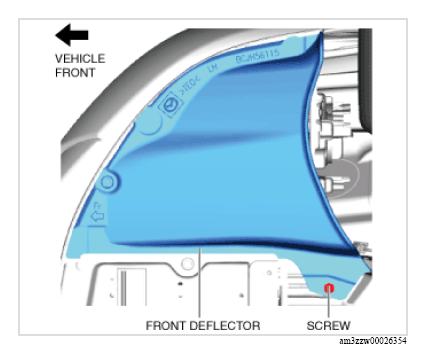

Remove the screw.

Courtesy of MAZDA MOTORS CORP.

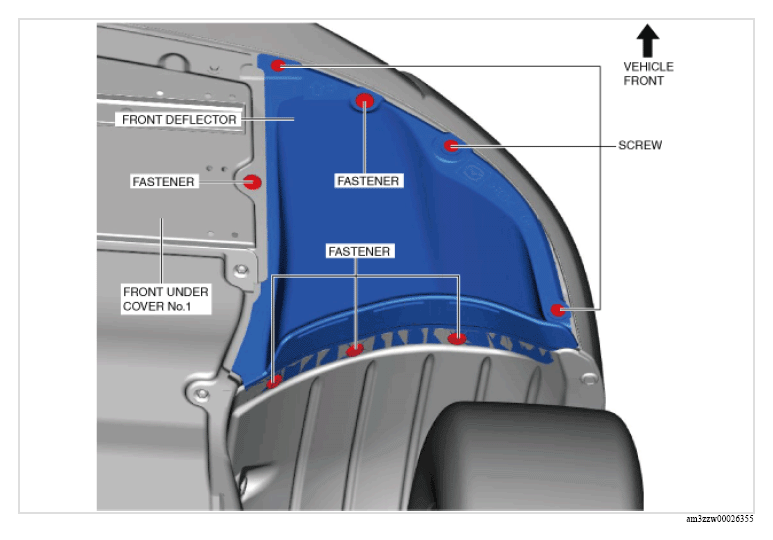

Remove the fasteners and screws.

Courtesy of MAZDA MOTORS CORP.
Remove the front deflector.
Install in the reverse order of removal.
