Speaker Inspection: Tweeter

Connect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
Remove the tweeter. (See TWEETER REMOVAL/INSTALLATION .)

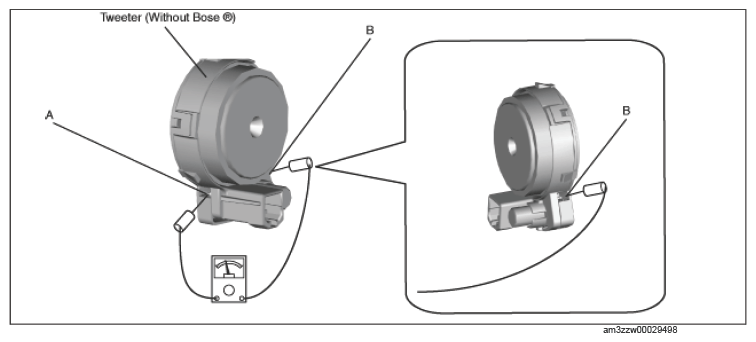

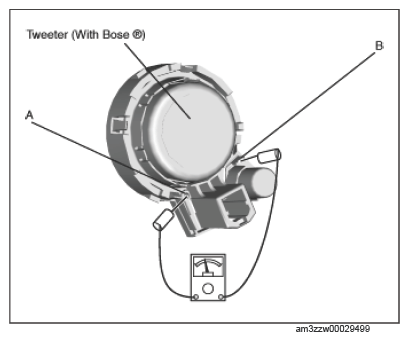

Inspect the resistance between positions A and B shown in the figure.
Tweeter resistance

Without Bose ® : 3.9-4.7 ohms

With Bose ® : 3.4 ohms

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.
- If not within the specification, replace the tweeter. (See TWEETER REMOVAL/INSTALLATION .)
