Rear Door Speaker Removal/Installation: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If the procedure is performed while holding the rear door speaker cone, it could deform the cone causing a malfunction. Therefore, perform the procedure while holding any part other than the cone.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
Disconnect the connector.

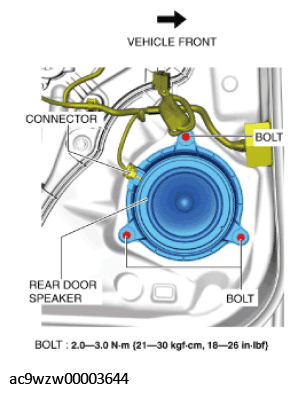

Fig 1: Rear Door Speaker, Connector And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.
Pull the rear door speaker in the direction of the arrow shown in the figure and remove it.

Fig 2: Pulling Rear Door Speaker
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal. (See REAR DOOR SPEAKER INSTALLATION NOTE .)
