Audio Pilot® MICROPHONE REMOVAL/INSTALLATION

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Audio Pilot® is a registered trademark of Bose® Corporation.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Disconnect the connector.

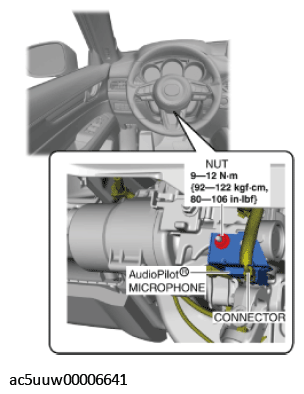

Fig 1: Locating Audiopilot Microphone With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the nut.
Remove the Audio Pilot® microphone.
Install in the reverse order of removal.
