Console Side Panel Removal/Installation: Removal

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Center console tray (Refer to CENTER CONSOLE TRAY REMOVAL/INSTALLATION .)
    2. Shift bezel (Refer to SHIFT BEZEL REMOVAL/INSTALLATION .)
    3. Upper panel (Refer to UPPER PANEL REMOVAL/INSTALLATION .)
    4. Selector lever knob (Refer to AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    5. Shift panel (Refer to SHIFT PANEL REMOVAL/INSTALLATION .)
  3. Pull the console side panel in the direction of the arrow shown in the figure and detach the clips and hooks from the front console.

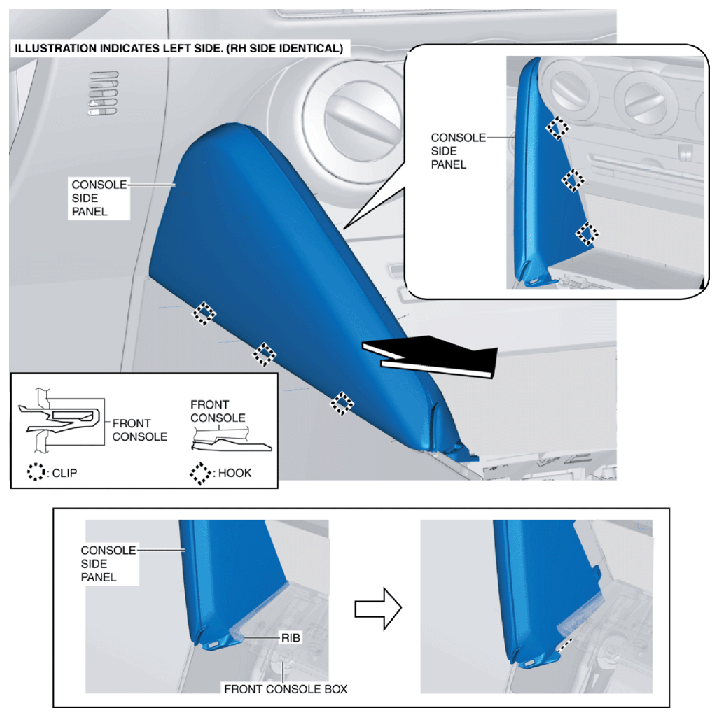

    Fig 1: Pulling Console Side Panel
    G10914761Courtesy of ABLE BODY CORP.
  4. Pull the console side panel in the direction of the arrow shown in the figure and remove it while releasing the rib.
