Rocker Arm Installation Note

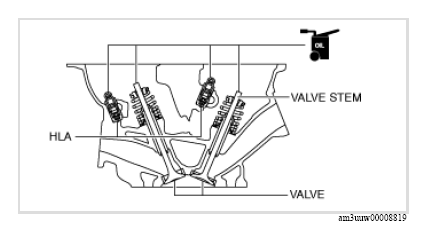

  1. Apply engine oil to the HLAs and the end of the valve stems.
    G13148996Courtesy of MAZDA MOTORS CORP.
  2. Install the rocker arms to the same positions as before removal.
