No. 4 Engine Mount: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Slots have been adopted for the No. 4 engine mount bracket installation holes. If the No. 4 engine mount bracket is deviated from the original position when installing the No. 4 engine mount bracket, engine noise or vibration could increase. Before removing the No. 4 engine mount bracket, place alignment marks on the No. 4 engine mount bracket so that they can be assembled to the same positions as before removal.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the air cleaner, air hose and fresh air duct as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  3. Remove the PCM component. (See PCM REMOVAL/INSTALLATION .)
  4. Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION .)
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.

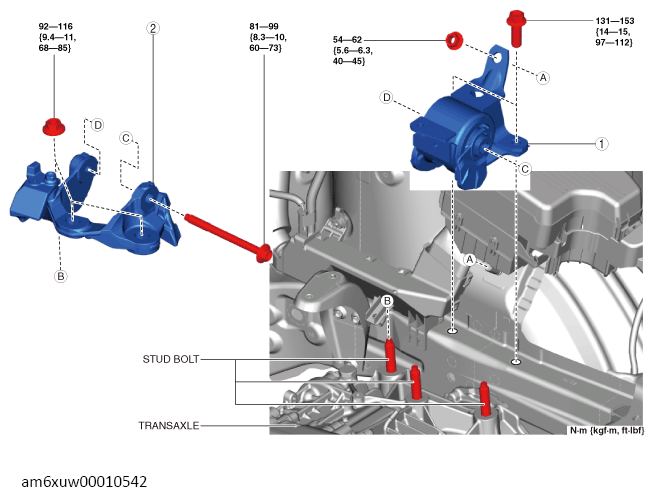

    Fig 1: No. 4 Engine Mount Components With Torque Specification
    G13720932Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 No. 4 engine mount rubber
    (See NO. 4 ENGINE MOUNT RUBBER REMOVAL NOTE .)
    (See NO. 4 ENGINE MOUNT RUBBER INSTALLATION NOTE .)
    2 No. 4 engine mount bracket
    (See NO. 4 ENGINE MOUNT BRACKET REMOVAL NOTE .)
    (See NO. 4 ENGINE MOUNT BRACKET INSTALLATION NOTE .)
