Windshield Washer Nozzle Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  2. Disconnect the windshield washer hose from the joint pipe. (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION .)
  3. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
  4. Disconnect the windshield washer hose from the windshield washer nozzle. (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION .)

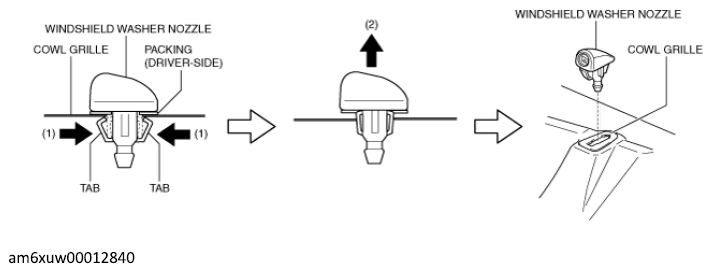

  5. While pressing windshield washer nozzle tabs in the direction of the arrows (1) shown in the figure below, pull the windshield washer nozzle in the direction of the arrow (2) to remove it from the cowl grille.
    Fig 1: Pressing Windshield Washer Nozzle Tabs
    G12235043Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
  7. Adjust the windshield washer nozzle. (See WINDSHIELD WASHER NOZZLE ADJUSTMENT .)
