Trunk End Trim Removal/Installation: Sedan-4SD

Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION .)

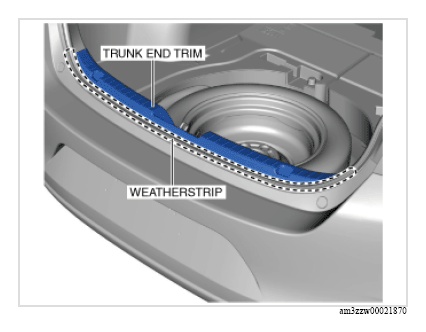

Partially peel back the weatherstrip.

Courtesy of MAZDA MOTORS CORP.

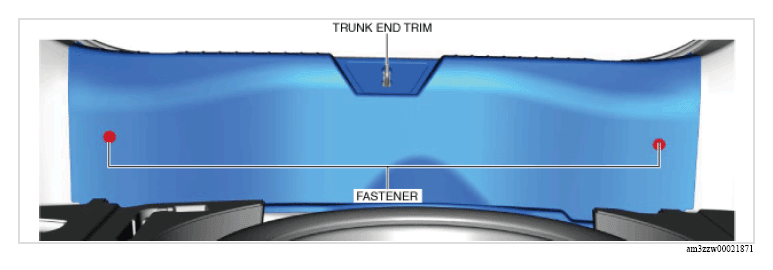

Remove the fasteners.

Courtesy of MAZDA MOTORS CORP.

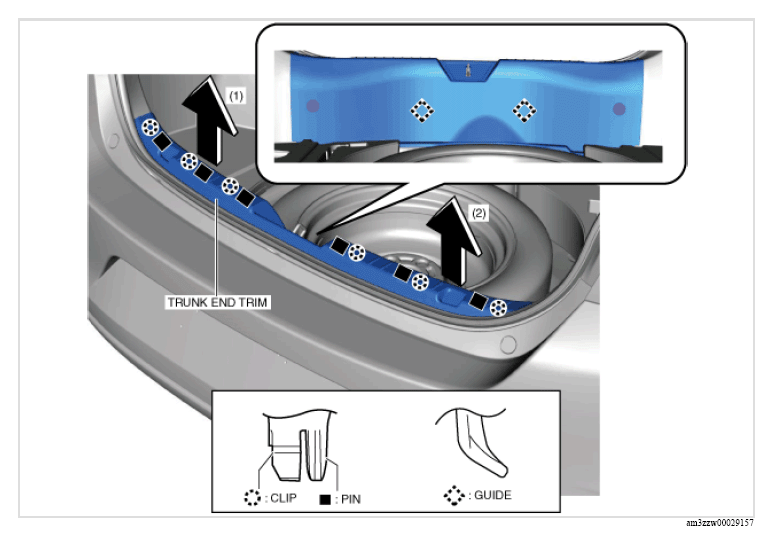

Pull the trunk end trim in the direction of the arrow in the order of (1), (2) shown in the figure while detaching the clips, pins, and guides.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
