Hose Clamps

When reinstalling, position the hose clamp in the original location on the hose and squeeze the clamp lightly with large pliers to ensure a good fit.

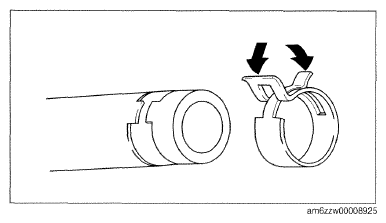

Fig 1: Positioning Of Hose Clamp

Courtesy of MAZDA MOTORS CORP.

NOTE:

Follow the description in each section because the clamps which are used with the fuel-related system differ from the one indicated above.
