Exhaust System Removal/Installation: 2WD: Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove in the order indicated in the table.
  3. Remove the insulator. (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION .)
  4. Install in the reverse order of removal.

Step 1

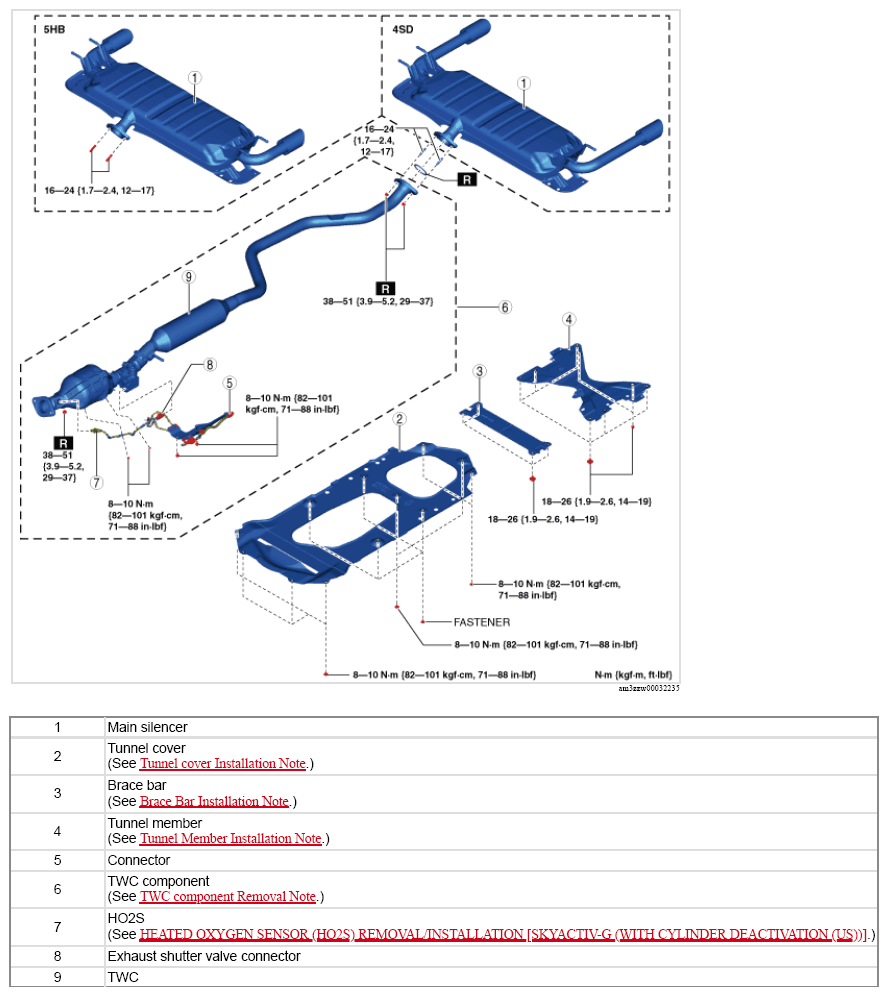

Fig 1: Exhaust System Components With Torque Specification (2WD; Step 1)
G13175138Courtesy of MAZDA MOTORS CORP.

Step 2

Fig 2: Exhaust System Components With Torque Specification (2WD; Step 2)
G13175139Courtesy of MAZDA MOTORS CORP.
