Automatic Transaxle Control System Wiring Diagram

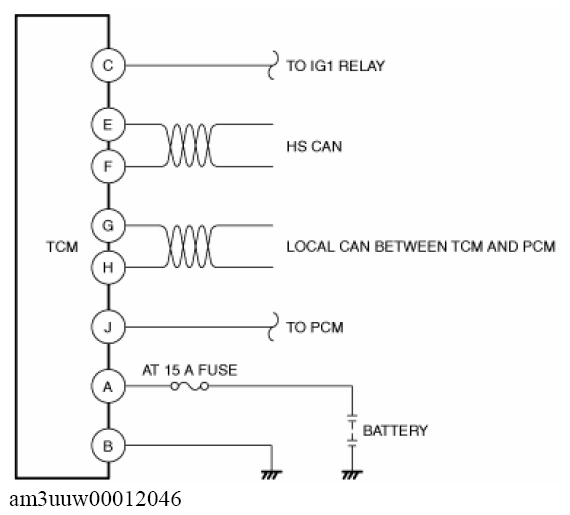

Fig 1: Automatic Transaxle Control System Wiring Diagram

G11432084

Courtesy of MAZDA MOTORS CORP.
