Tie-Rod End Inspection

1. Remove the steering gear and linkage. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .)
2. Remove the tie-rod end. (See STEERING GEAR AND LINKAGE DISASSEMBLY .)
3. Inspect the tie-rod end for damage and the boot for cracks.

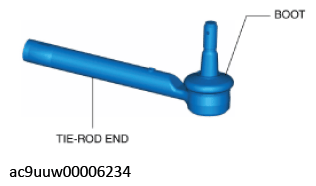

   Fig 1: Tie-Rod End Boot Location

   Courtesy of MAZDA MOTORS CORP.
   • If there is any malfunction, replace the tie-rod end. (See STEERING GEAR AND LINKAGE ASSEMBLY .)
4. Inspect the tie-rod end for excessive play.
   • If there is any malfunction, replace the tie-rod end. (See STEERING GEAR AND LINKAGE ASSEMBLY .)
5. Rotate the tie-rod end 5 times.
6. Install 2 nuts to the tie-rod end and measure the rotational torque of the tie-rod end using a torque wrench.

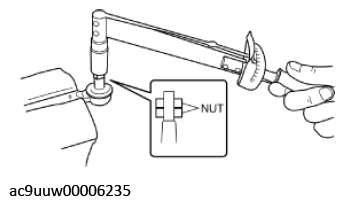

Fig 2: Measuring Rotational Torque Of Tie-Rod End Using Torque Wrench

Courtesy of MAZDA MOTORS CORP.

Tie-rod end rotational torque

0.5-3.0 N.m {5.1-30 kgf.cm, 4.5-26 in.lbf}

• If not within the specification, replace the tie-rod end. (See STEERING GEAR AND LINKAGE ASSEMBLY .)
