U.S.A. and CANADA

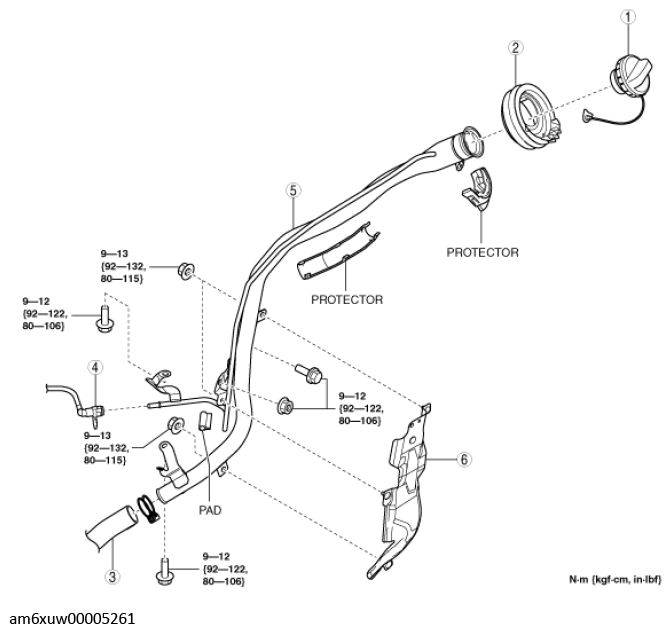

Fig 1: Exploded View Of Fuel-Filler Pipe With Torque Specification (U.S.A. And Canada)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Fuel-filler cap
2	Dust cover (See Dust Cover Removal Note .)
3	Joint hose (See Joint Hose Installation Note .)
4	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .)
5	Fuel-filler pipe (See Fuel-filler Pipe Removal Note .)
6	Fuel-filler pipe protector
