Back-Up Light Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the battery component. (ex: battery, battery tray) (See BATTERY REMOVAL/INSTALLATION .)
  3. Disconnect the back-up light switch connector. (See BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION .)

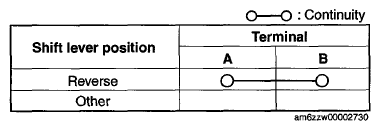

  4. Verify that the continuity between the back-up light switch terminals is as indicated in the table.
G13728428Courtesy of MAZDA MOTORS CORP.
G06732187Courtesy of MAZDA MOTORS CORP.
