Neutral Switch Removal/Installation

  1. Remove the transmission. (See TRANSMISSION REMOVAL/INSTALLATION .)
  2. Disconnect the neutral switch connector.
  3. Remove neutral switch.

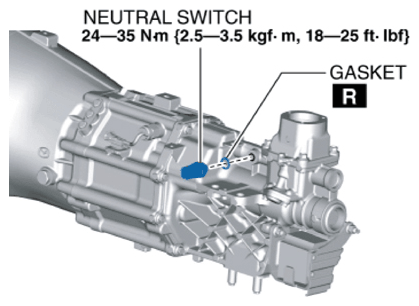

    Fig 1: Removing Neutral Switch
    G10952671Courtesy of MAZDA MOTORS CORP.
  4. Install a new gasket and neutral switch.
  5. Install the transmission. (See TRANSMISSION REMOVAL/INSTALLATION .)
