Symptom Troubleshooting [Dynamic Stability Control]
>>
System Wiring Diagram
System Wiring Diagram

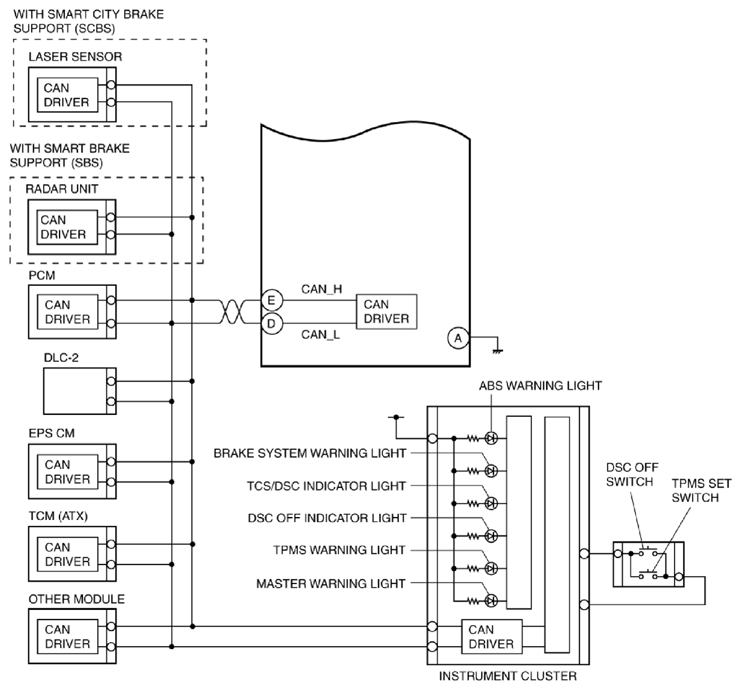

Fig 1: DSC System Wiring Diagram (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

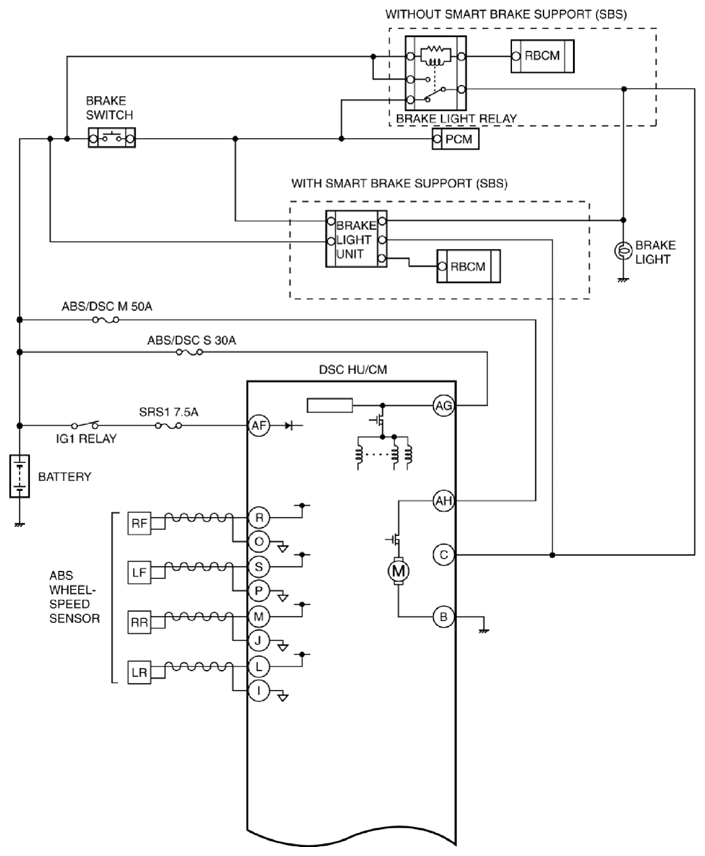

Fig 2: DSC System Wiring Diagram (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
