Indicator Removal Note

  1. Detach tabs shown in the figure and remove the indicator.

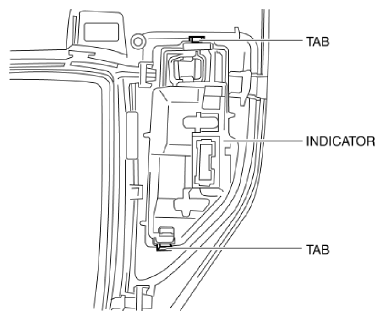

    Fig 1: Detaching Tabs
    G10961203Courtesy of MAZDA MOTORS CORP.
