Drive Plate Installation Bolts Installation Note

Set the SST against the drive plate.

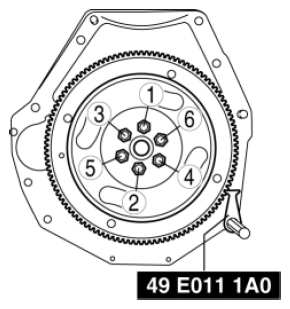

Fig 1: Drive Plate Installation Bolts Tightening Order
Courtesy of MAZDA
Tighten the new drive plate installation bolts uniformly in two or three steps in the order shown in the figure.
Tightening torque
- 108-116 N. {11.1-11.8 kgf.m, 80-85 ft.lbf}
