Selector Cable Removal Note

  1. Remove the clip from the selector cable and disconnect the selector cable from manual shaft lever.

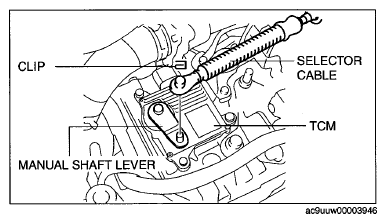

    Fig 1: Selector Cable, TCM, Clip And Manual Shift Lever
    G07823098Courtesy of MAZDA MOTORS CORP.
  2. Remove the selector cable from the cable bracket.

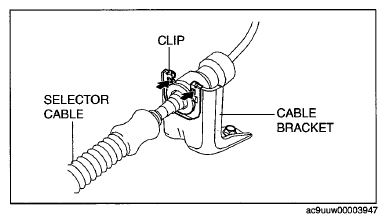

    Fig 2: Cable Bracket, Selector Cable And Clip
    G07823099Courtesy of MAZDA MOTORS CORP.
