Steering Gear And Linkage Assembly: Notes

CAUTION:
  • To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.
  1. Assemble in the order shown in the figure.

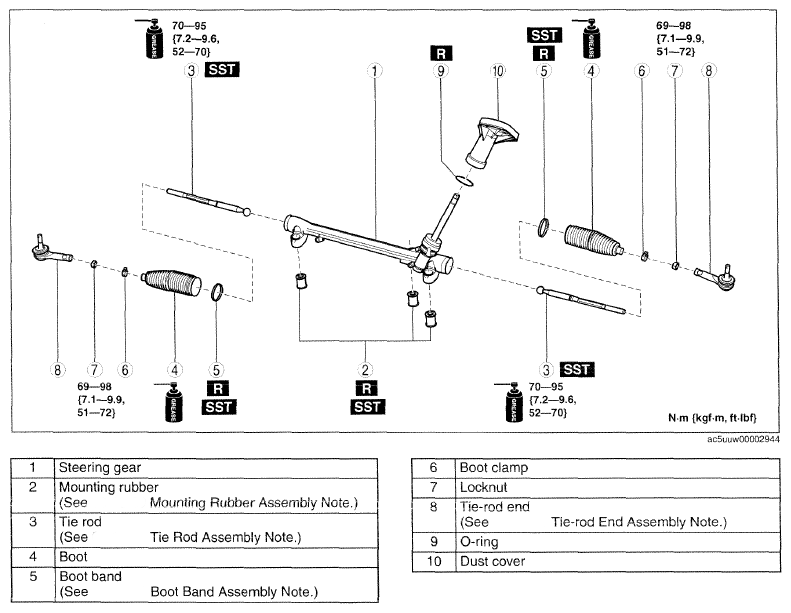

    Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications
    G09759820Courtesy of MAZDA MOTORS CORP.
