Driver-Side Side Air Bag Module Connector End View

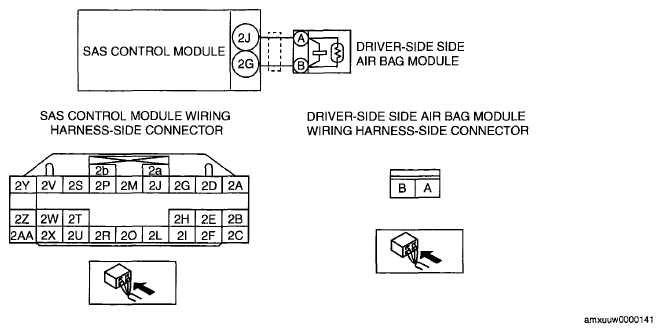

Fig 1: Driver-Side Side Air Bag Module Connector End View

G06150753

Courtesy of MAZDA MOTORS CORP.
