(Without Advanced Keyless Entry And Push Button Start System

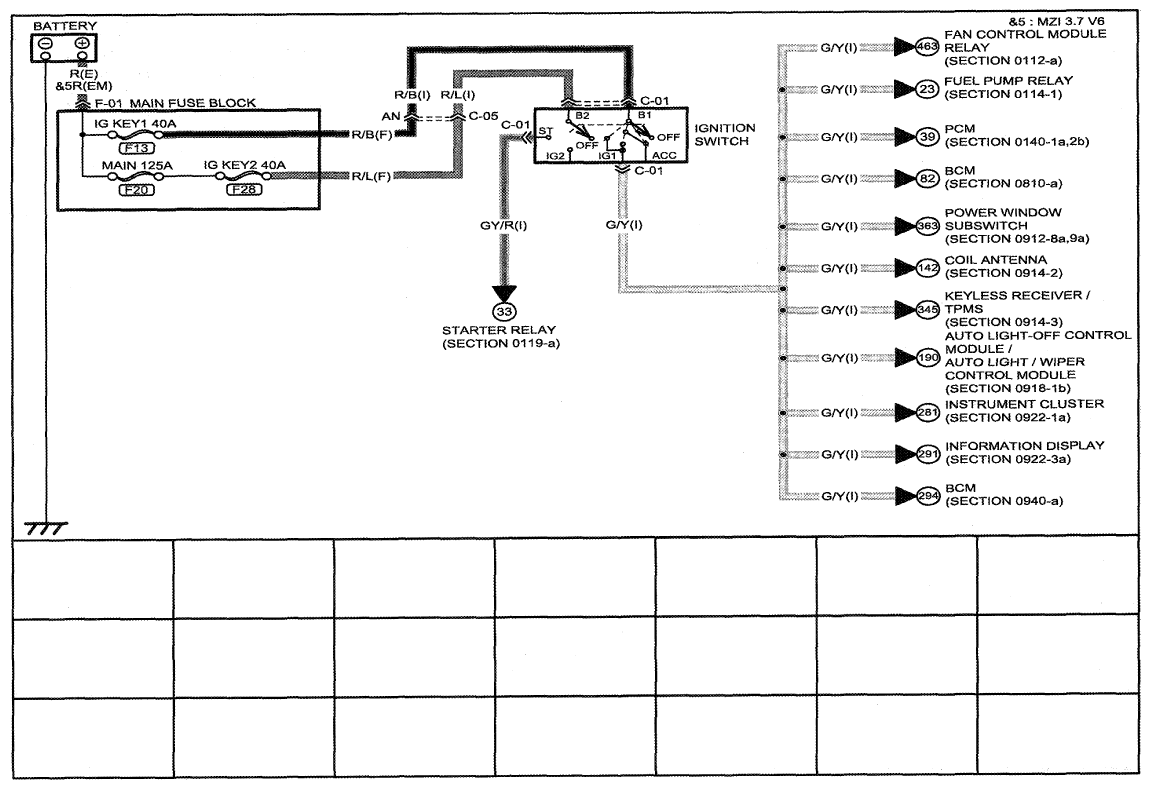

Fig 1: Power (W/O Advanced Keyless Entry And Push Button Start System) Wiring Diagram (0921-1a); 1 Of 2

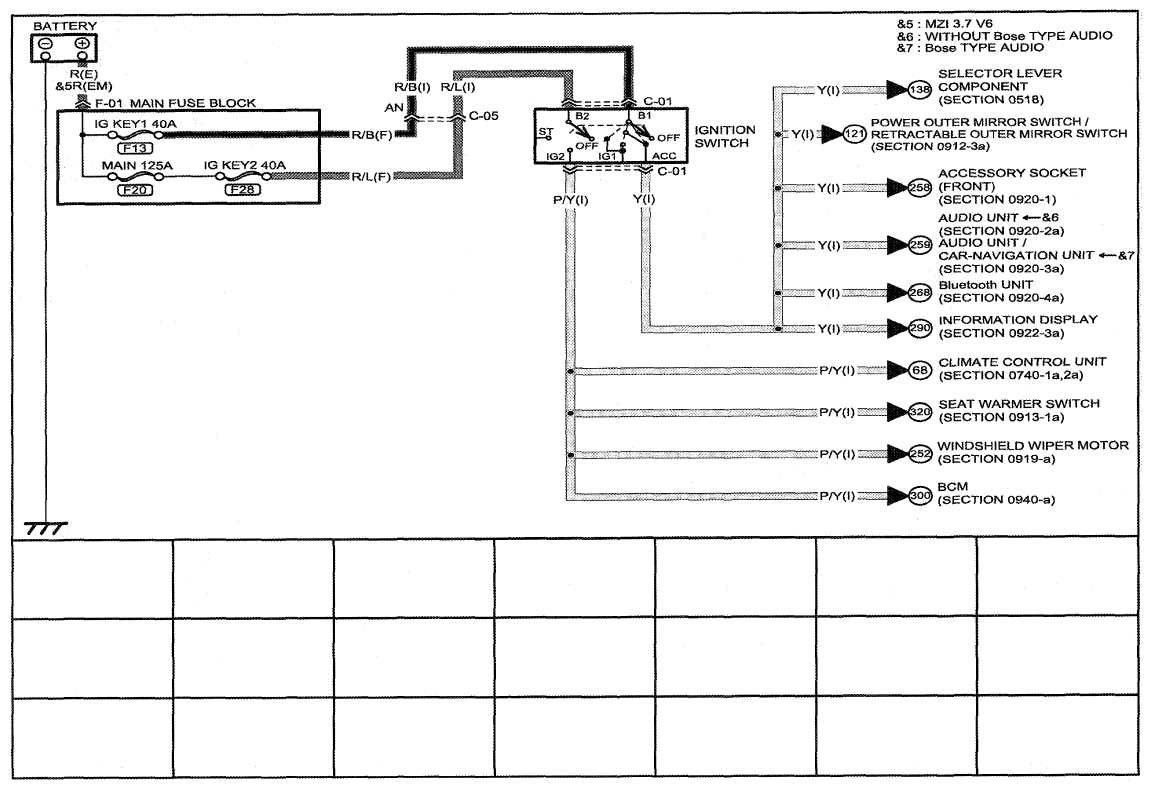

Fig 2: Power (W/O Advanced Keyless Entry And Push Button Start System) Wiring Diagram (0921-1a); 2 Of 2

Fig 3: Power (W/O Advanced Keyless Entry And Push Button Start System) Wiring Diagram (0921-1b); 1 Of 2

Fig 4: Power (W/O Advanced Keyless Entry And Push Button Start System) Wiring Diagram (0921-1b); 2 Of 2
