Windshield Wiper Motor Assembly Note

  1. Connect the windshield wiper motor to the vehicle wiring harness connector, operate the windshield wipers, and then stop them at the auto-stop position.
  2. Adjust the motor crank and wiper link No.1 so that they are parallel as shown in the figure.

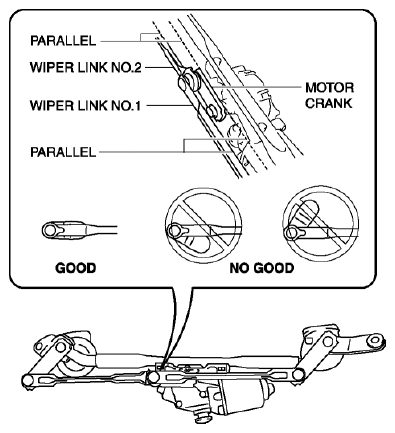

    Fig 1: Adjusting Motor Crank And Wiper Link No.1 Parallel
    G08144905
  3. Assemble the windshield wiper motor.
