Windshield Wiper Motor Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

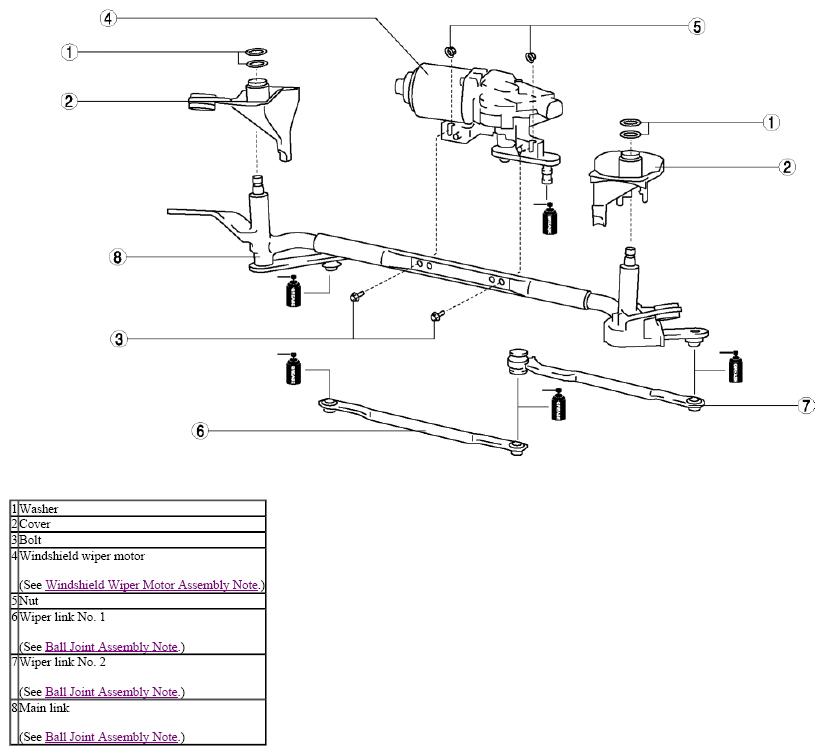

    Fig 1: View Of Windshield Wiper Motor Components
    G08144903
