Rain Sensor Removal/Installation: Notes

Disconnect the negative battery cable.
Open the rain sensor cover in the direction of the arrow and remove it while releasing rain sensor cover tab A.

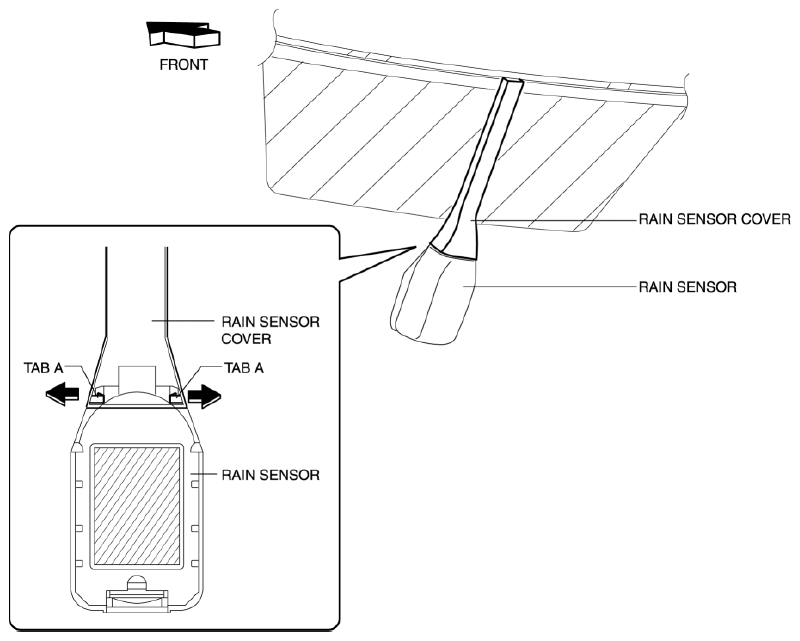

Fig 1: Rain Sensor Cover Tab A
Disconnect the rain sensor connector.

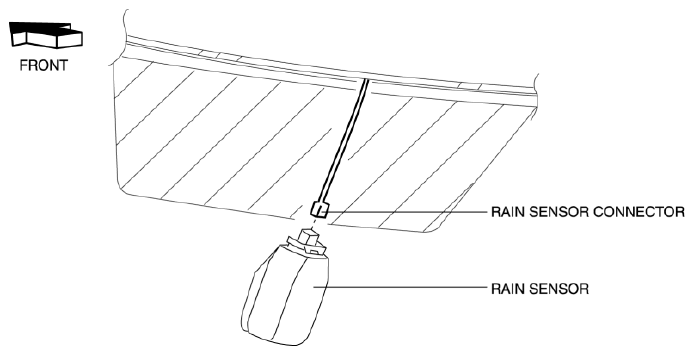

Fig 2: Rain Sensor Connector
Slide rain sensor tab B in the direction of the arrow shown in the figure and detach tab B.

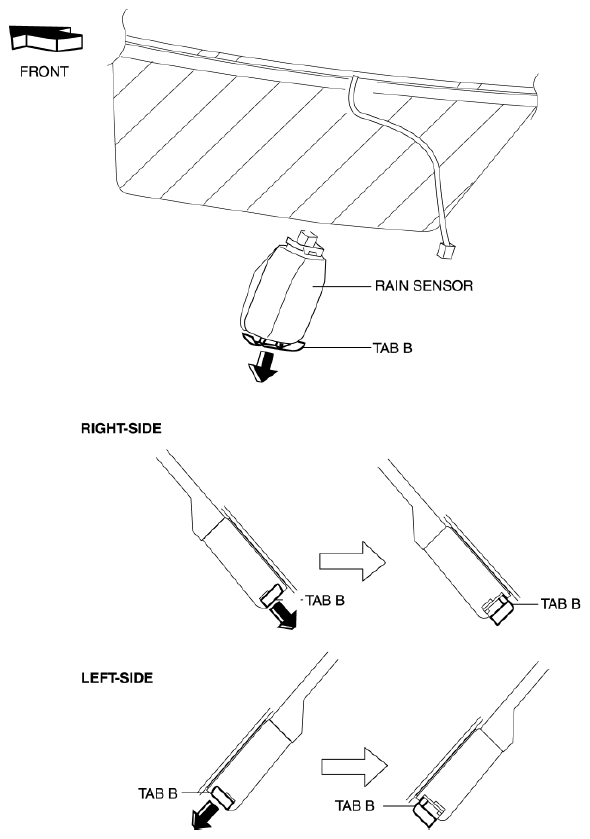

Fig 3: Sliding Rain Sensor Tab B
Remove the rain sensor in the direction of the arrow shown in the figure.

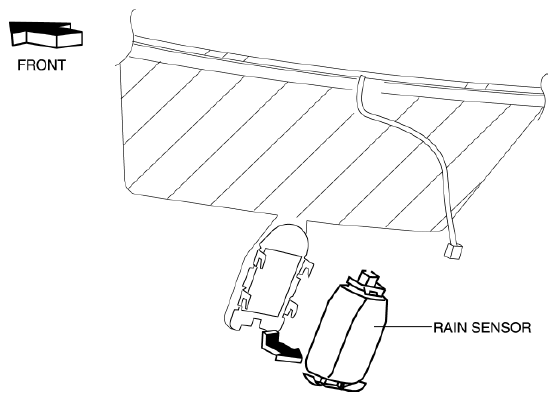

Fig 4: Rain Sensor
Peel off the rain sensor protective sheet from the rain sensor.

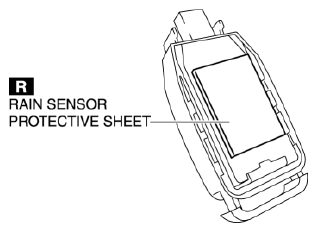

Fig 5: Rain Sensor Protective Sheet
Install in the reverse order of removal. (See RAIN SENSOR INSTALLATION NOTE .)
