Symptom Troubleshooting [Engine Control System 2.3L L3 With TC]
>>
Control System Device And Control Relationship Chart
Control System Device And Control Relationship Chart

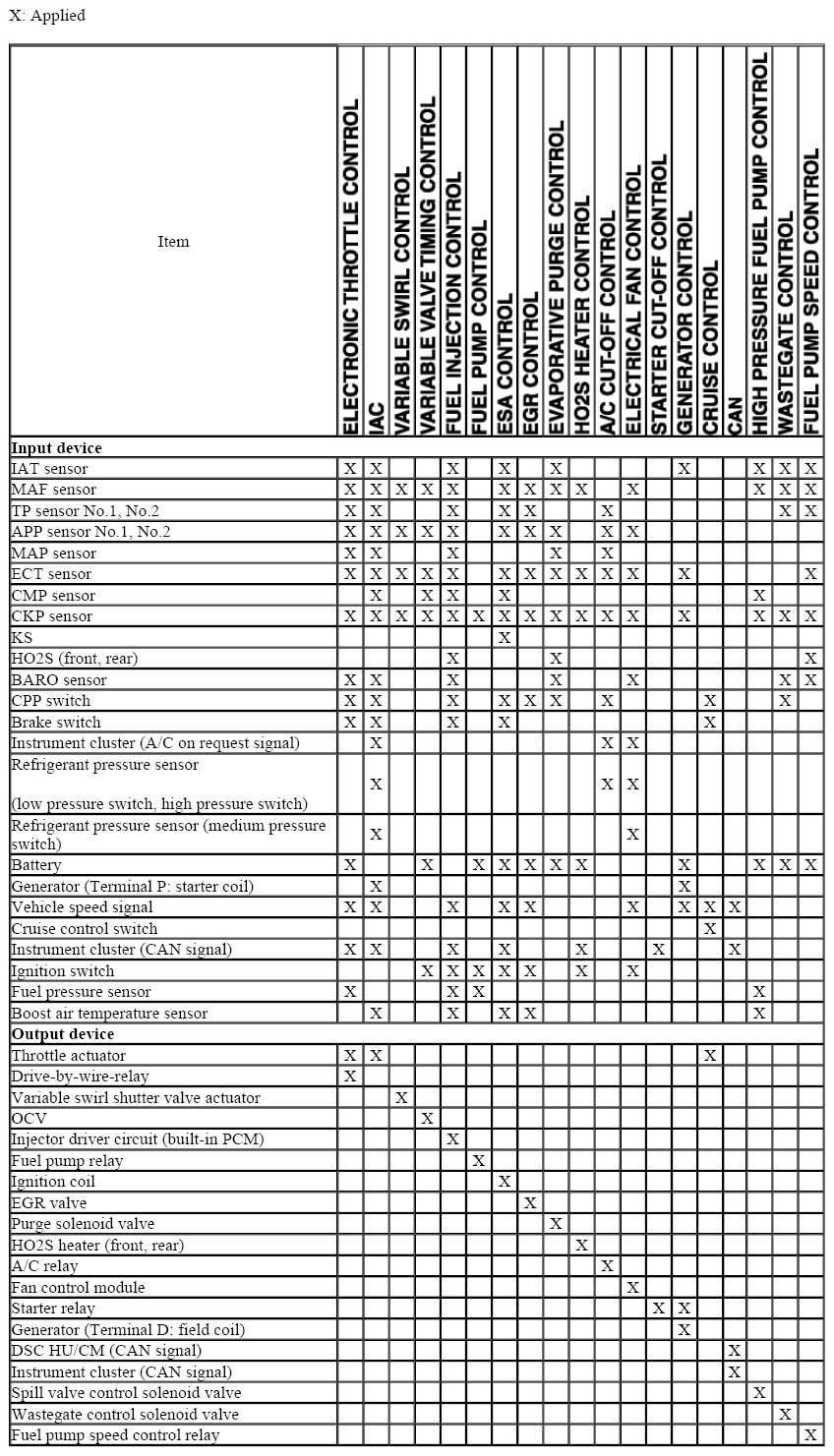

Fig 1: Control System Device And Control Relationship Chart (L3 With TC)
