PCM Connector Connection Note

CAUTION:
  • If the PCM connector is inserted at an angle and the lever is moved, the connector could be damaged. Verify that the PCM connector is inserted straight.

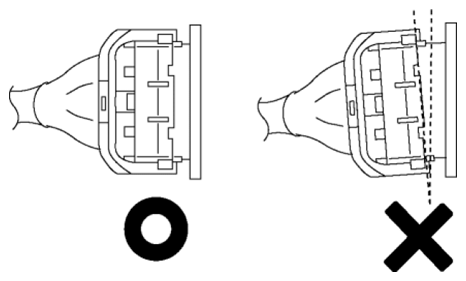

    Fig 1: Inspecting PCM Connector Connection
    G08245029
  1. Verify that the PCM connector lever is tilted towards the wiring harness side as shown in the figure.

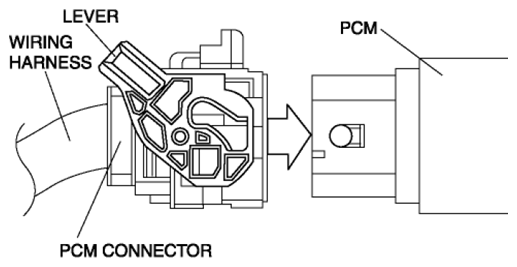

    Fig 2: Identifying PCM Connector Lever Is Tilted Towards Wiring Harness Side
    G08245030
  2. Insert the PCM connector straight until it contacts the PCM and verify that the lever reverts upward naturally.
  3. Push the lever until a click is heard.

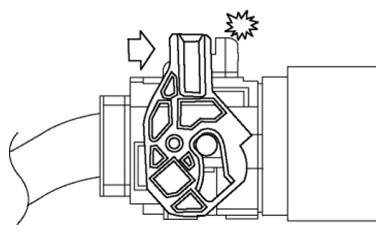

    Fig 3: Pushing Lever Until Click Is Heard
    G08245031
