OCV signal
OCV signal

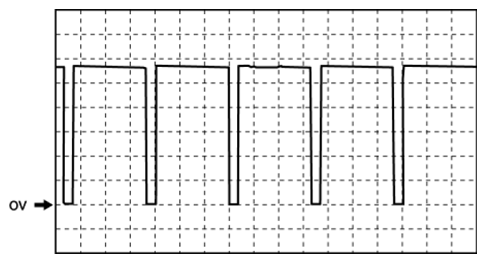

Fig 1: OCV Signal Graph
PCM terminals
2AF (+)-body ground (-)
Oscilloscope setting
2.5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
Idle after warm up (no load, P/S off, A/C off)
